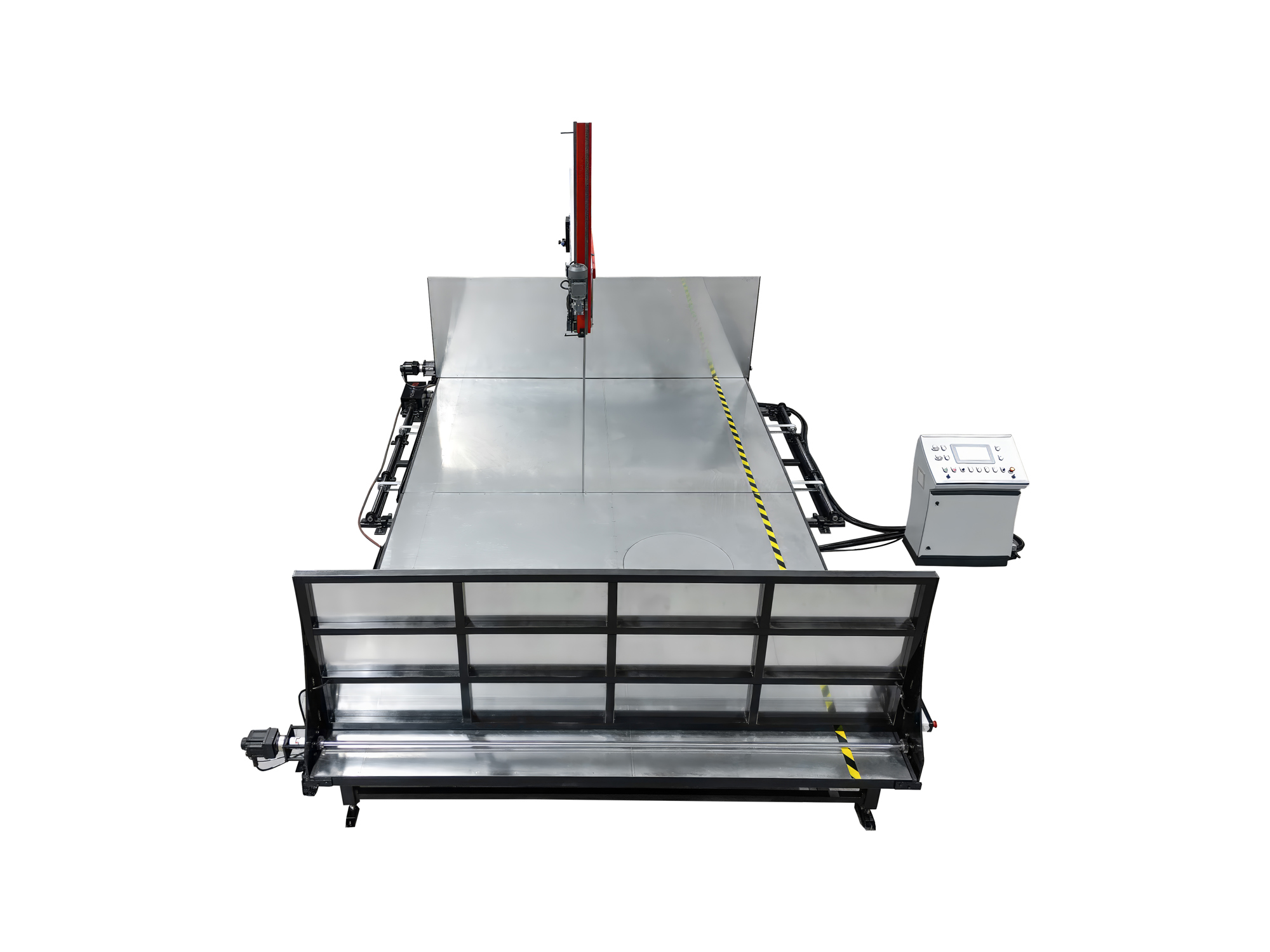

VC-75S

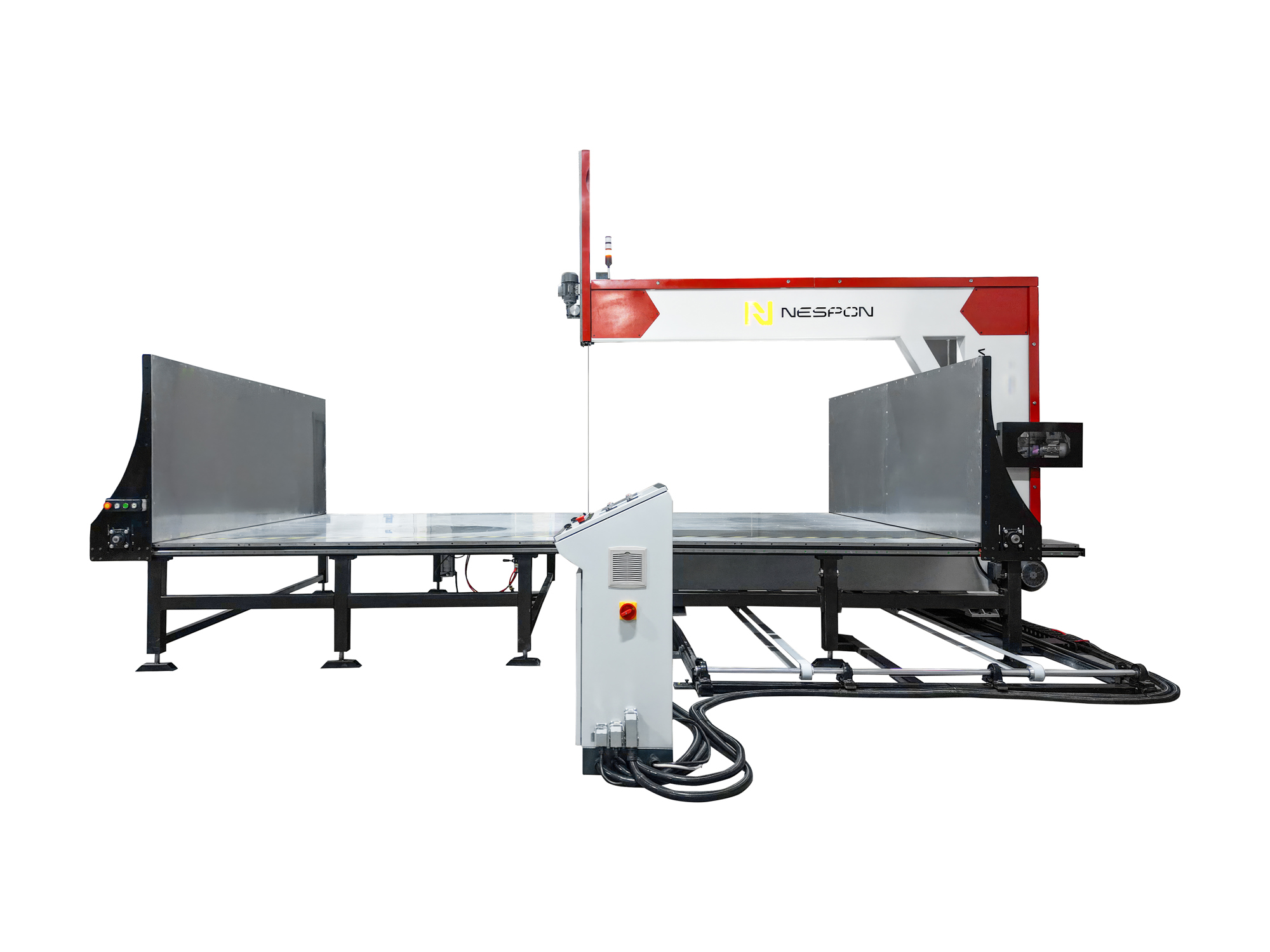

Automatic Vertical Foam Cutting Machine

Call Now Contact Us Fullscreen Mode

VC-75S Overview

With its powerful motor structure and servo-controlled precision motion system, it provides fast, accurate, and low-waste cutting, delivering high performance by increasing efficiency and continuity in production.

Wide Processing Area

1400 x 2500 x 2800 mm

High-Power Cutting Motor

7.5 kW

Servo-Controlled Motion

3 kW

Control System

Touchscreen PLC Panel

High Production Speed

30 m/dk

Working Area

85 m2

Key Highlights of VC-75S

It delivers maximum precision and efficiency through a servo-controlled system.

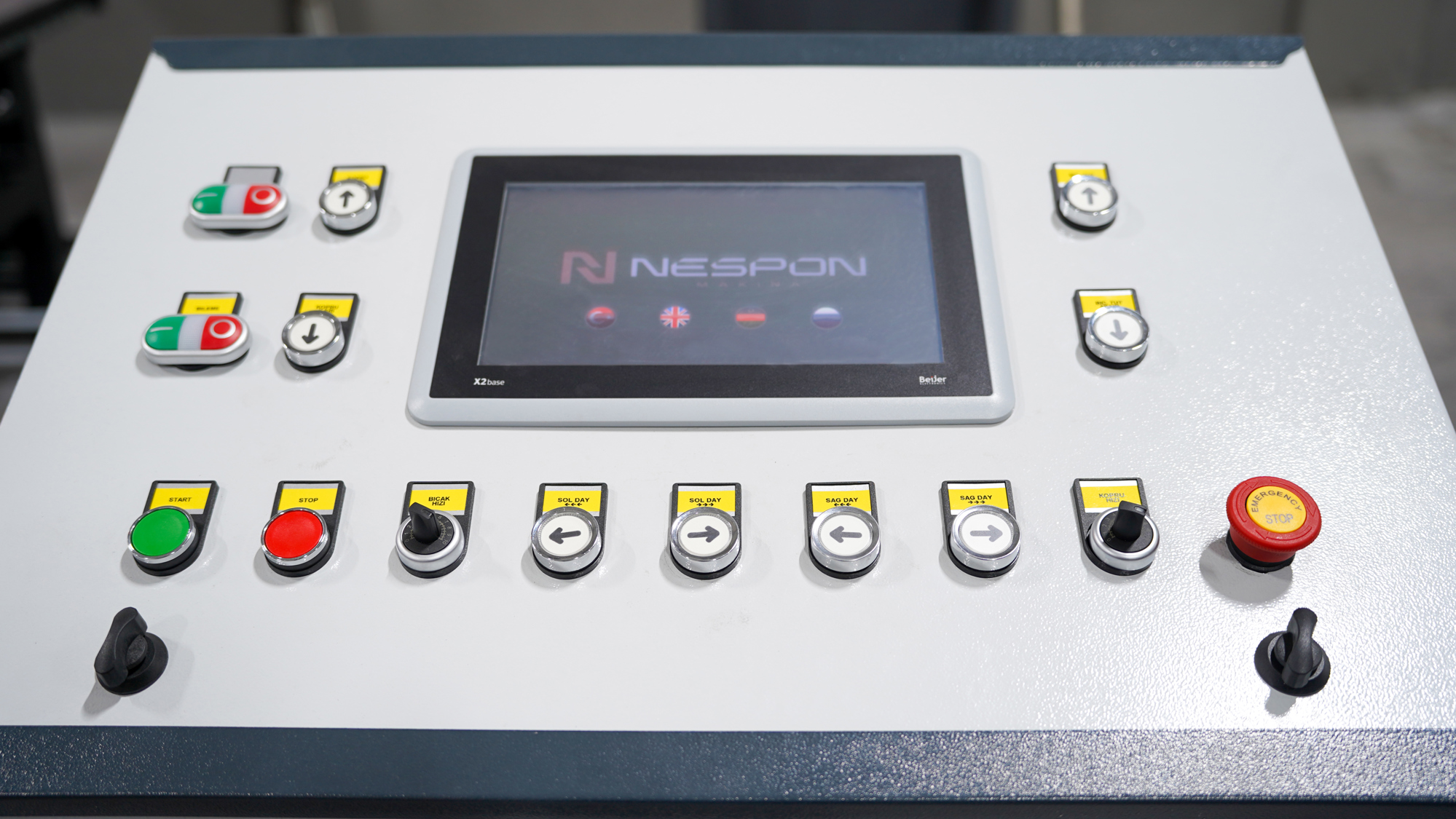

Smart PLC and Automatic Control

All machine functions are easily managed via the PLC touchscreen panel. Thanks to its user-friendly interface, operator errors are reduced, and the production process becomes more controlled and efficient.

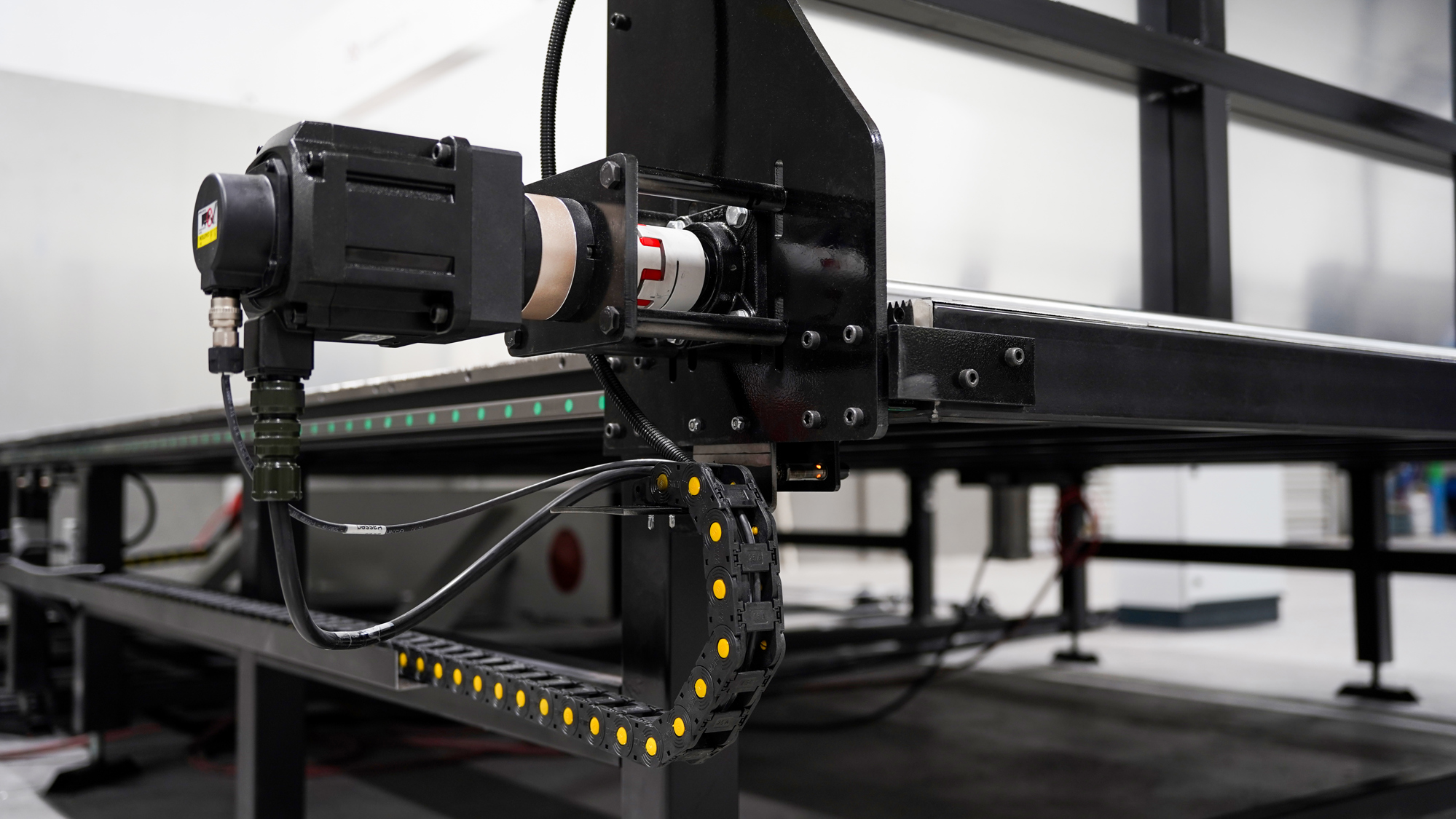

High-Speed and Precise Cutting

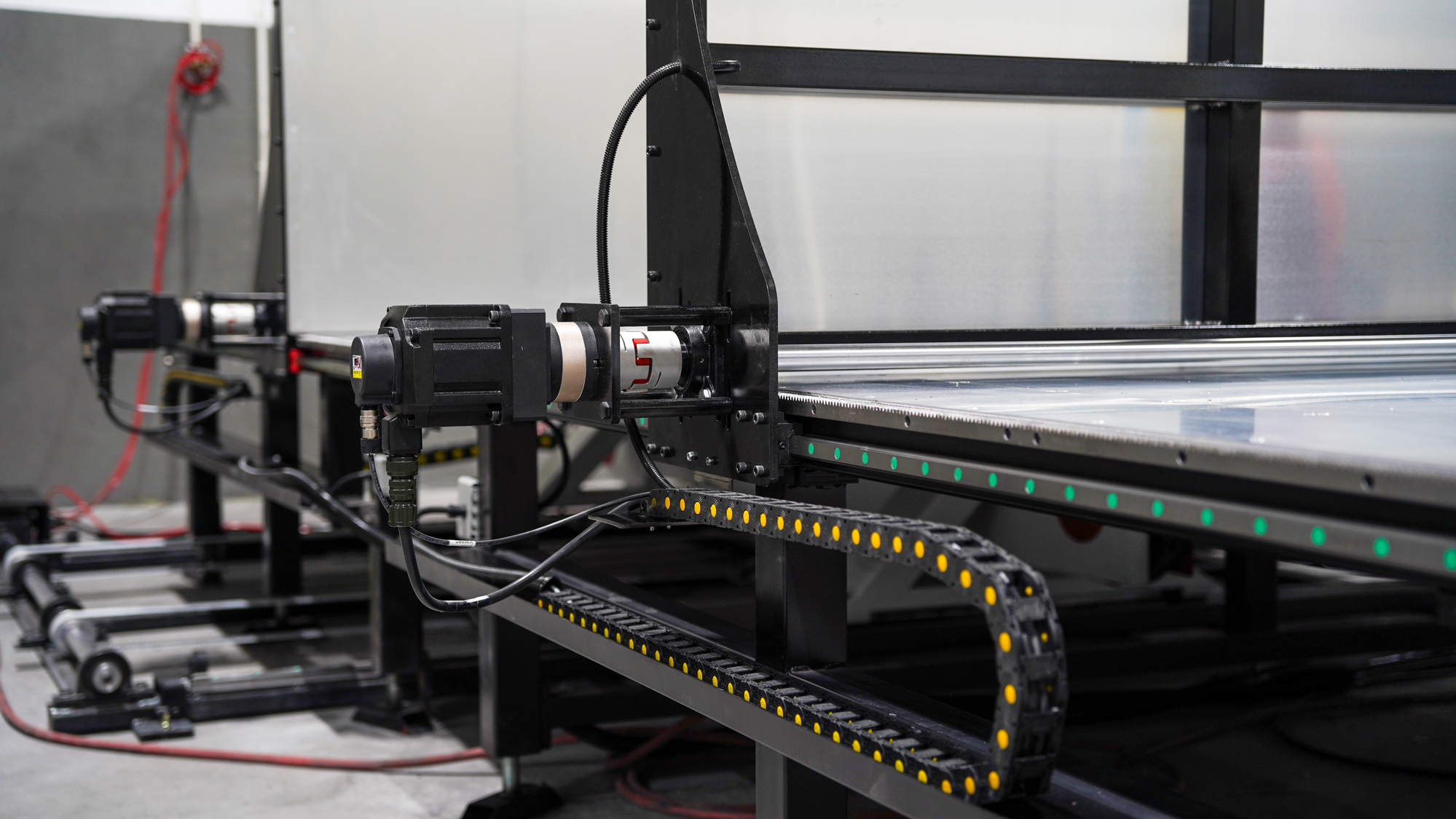

With a 3 kW servo motor and an optimized bridge movement system, high-speed cutting is performed while maintaining precision. Thanks to the blade drive motor and gearbox system, smooth and flawless cutting surfaces are achieved.

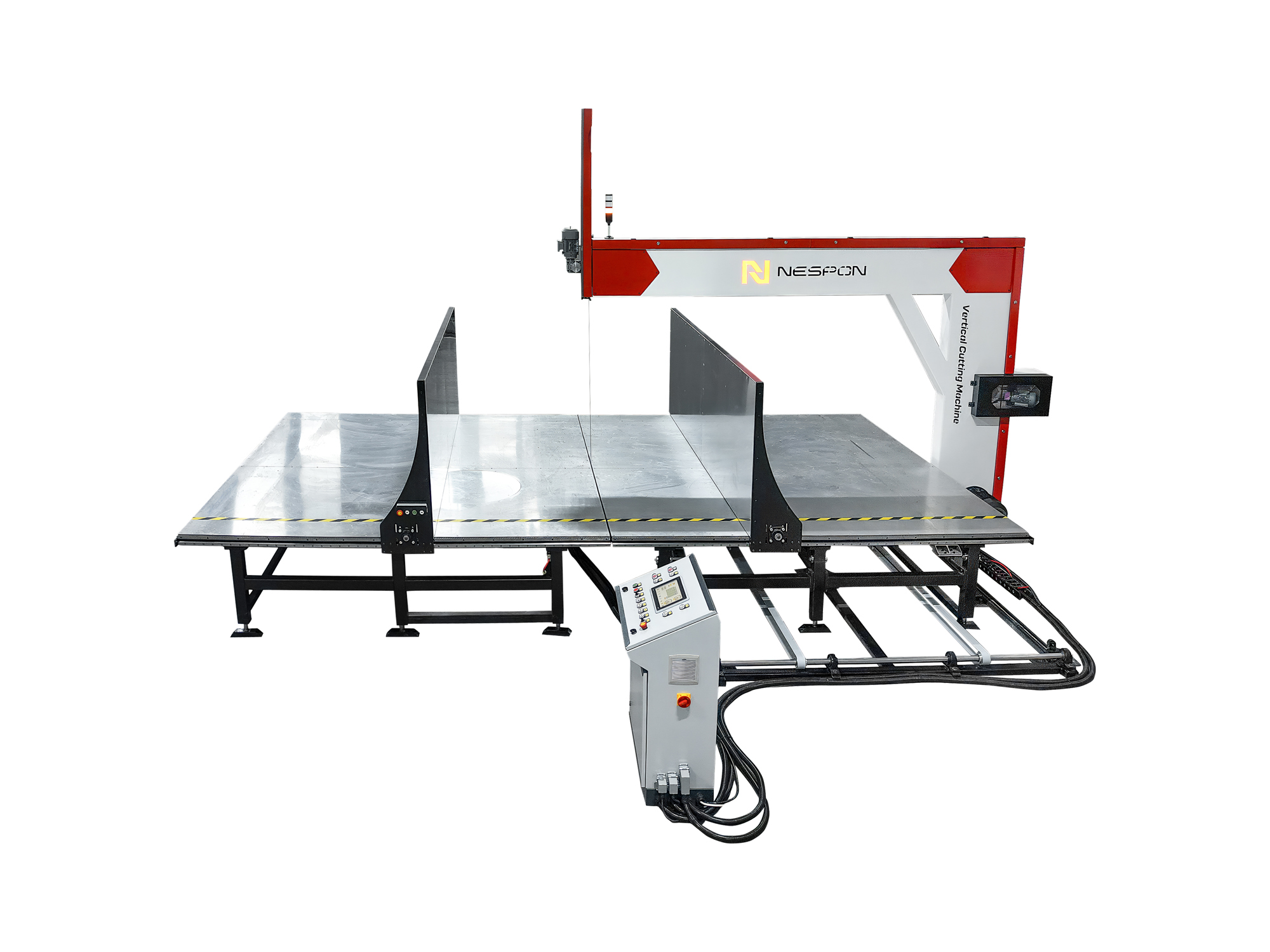

Wide and Stable Cutting Area

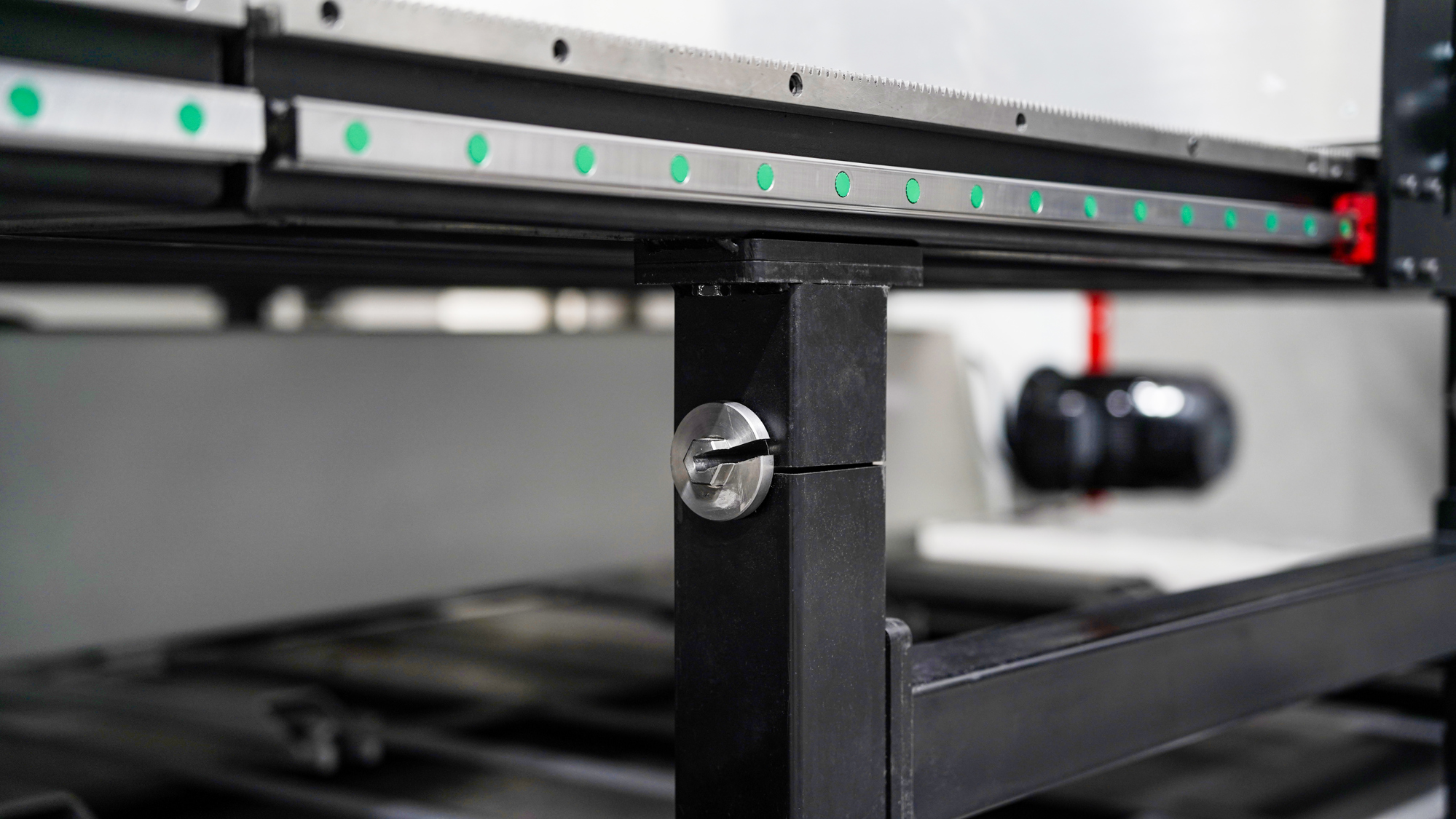

Thanks to its 1400 x 2500 x 2600 mm working area, large foam blocks can be processed with ease. The robust frame structure and precision rail system minimize vibration during cutting, ensuring smooth and high-quality results.

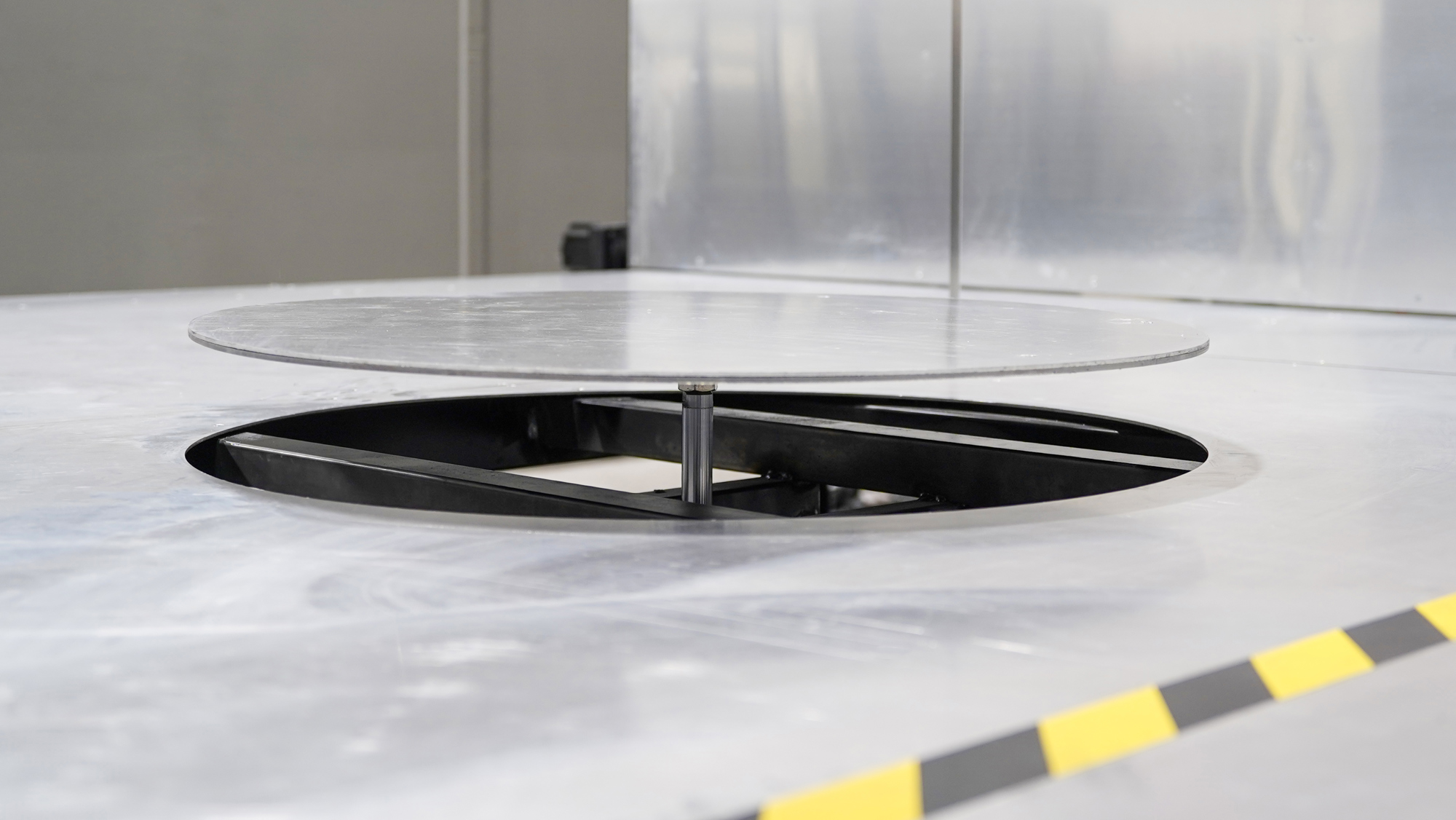

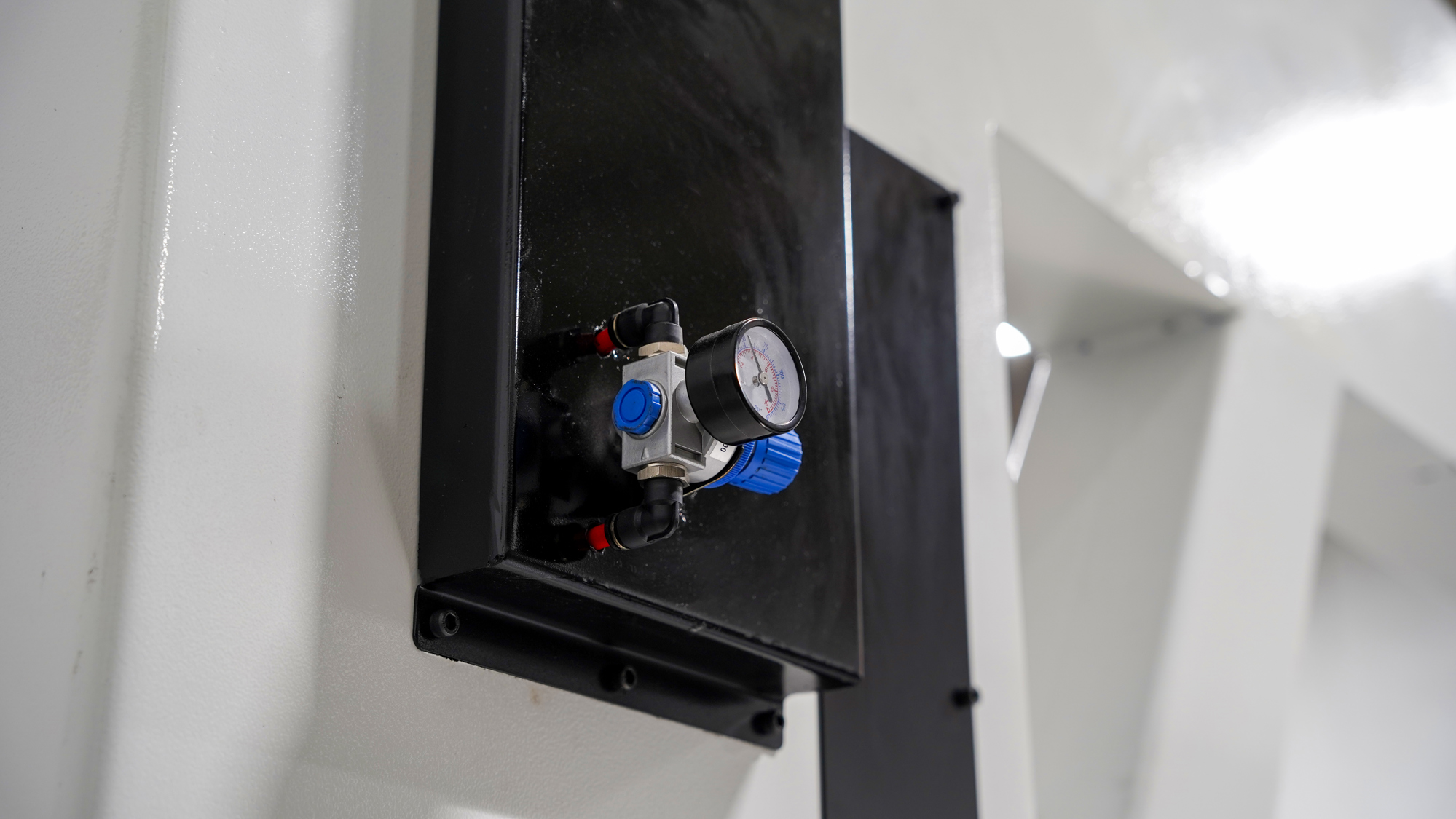

Block Rotation System

Thanks to the pneumatic piston, it requires less manual labor and provides ease of use.

View Gallery Automatic Vertical Foam Cutting Machine

Technical Specifications of the VC-75S

Effortless Control, Maximum Performance!

Processing Area	1400 x 2500 x 2600 MM
Bridge Movement Motor	3KW Servo Motor
Bridge Movement System	Timing Belt System
Blade Drive Motor	7.5KW Asynchronous Motor
Bridge Movement Reducer	Type E 75 Reducer
Bridge Rails and Carriages	30 Hiwin Brand
Blade Tensioning and Sharpening Motor Systems	Pneumatic Piston or Manual System Control
Table Edge Motor and Reducer	2KW Servo Motor with Planetary Gear Reducer
Table Surface System	3MM Aluminum Plate
Control Unit	PLC Touchscreen Control Panel
Electrical & Electronic Systems	Professional Series (Siemens, Eaton, Schneider)
Pulley System	Ø400 MM PU-Coated Phosphated Cast
Pulley Bearing System	High-Speed Bearings from SKF, FAG, NACHI, TIMKEN
Bridge Movement Speed	No-load Speed: Max 30 M/Min

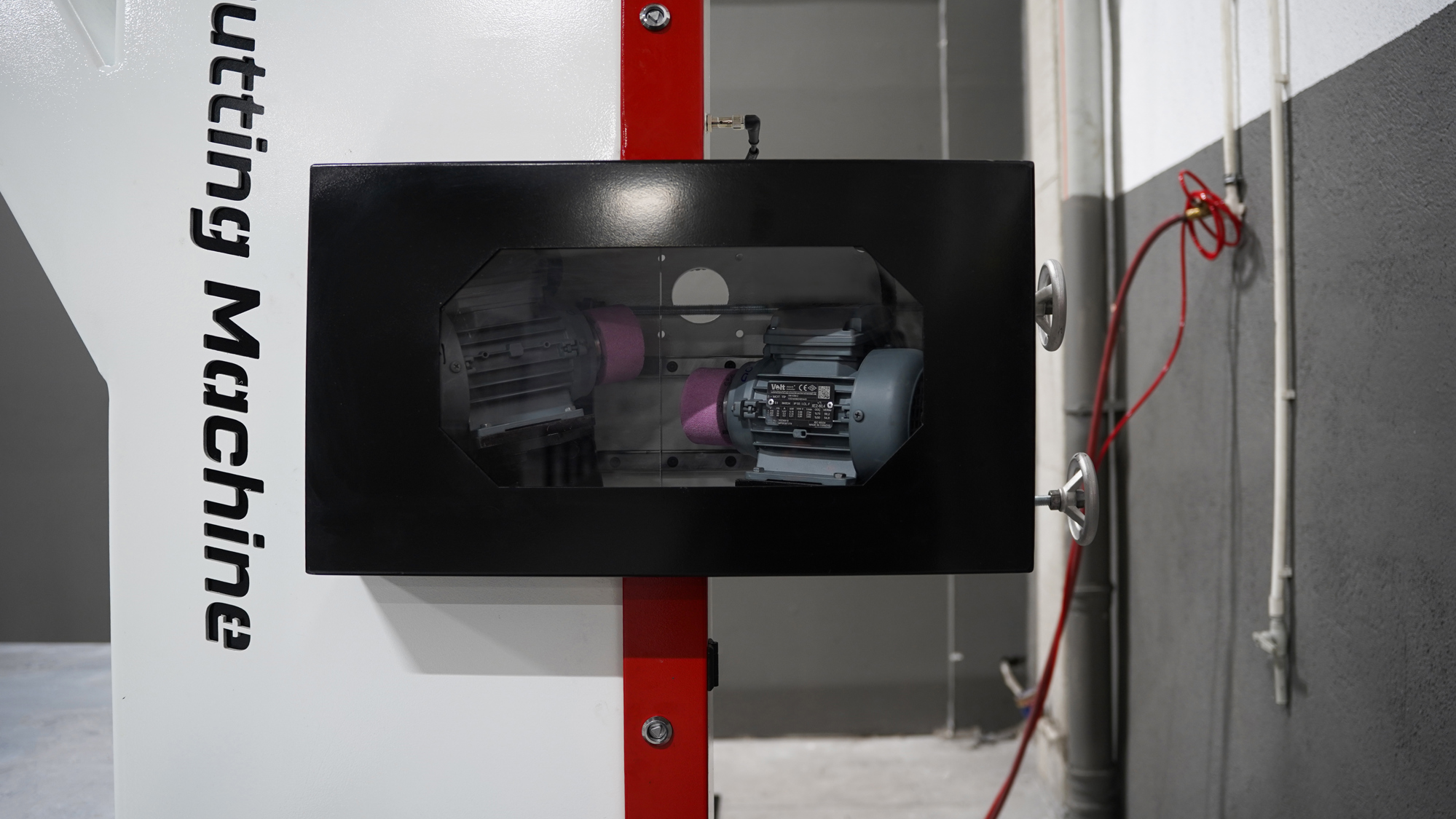

Sharpening Motors	0.18 KW Asynchronous, 2 Units
Power Consumption	9.5 KW
Working Height	4500 MM
Working Area	85 M²

Everything You Want to Know About the VC-75S

More Confidence, More Performance with Every Question.

What is the machine’s cutting area?

The machine features a spacious cutting area of 1400 x 2500 x 2600 mm, allowing large-sized foam blocks to be processed with ease.

What is the working principle of the bridge movement system?

The bridge movement is driven by a 3 kW servo motor supported by a planetary gearbox system. This structure ensures high precision and stable motion.

How is cutting precision ensured?

A 7.5 kW blade drive motor ensures a vibration-free operation, resulting in a smooth and precise cutting surface.

What control system is used in the machine?

The machine operates with a PLC-based touchscreen control panel. All functions can be easily managed through a user-friendly interface.

What is the purpose of block rotation?

Thanks to the pneumatic piston system, it requires less manual labor and provides greater ease of use.
