SHRED-X90

Foam Trimming Machine

Call Now Contact Us Fullscreen Mode

SHRED-X90 Overview

The Foam Trimming Machine, with its powerful motor and adjustable sieve system, delivers fast, precise, and uniform output; increases efficiency and reduces costs.

High Daily Capacity

5 Tons

High-Power Drum Motor

90 kW 1500 rpm
Asynchronous Motor

Flexible Screen System

Adjustable Screen Diameters

Reliable Electrical Equipment

Siemens, Eaton & Schneider Series

Spiked Drum Technology

Capacity-Enhancing Shredding

Powerful Suction Unit

7.5 kW 3000 RPM Fan

Vibration-Free Transmission System

Belt and Pulley

Compact Working Area

30 m² Space is Sufficient

User-Friendly Panel

Button-Controlled System

Energy Efficiency

Current Monitoring with Ammeter

Work Safety in Machine Product Feeding

Conveyor Belt

Cool Performance Even in High Heat!

Heat-Resistant, High-Performance Bearing System

Key Highlights of the SHRED-X90

High Power, Smart System – Superior Performance Compatible with Every Foam Type.

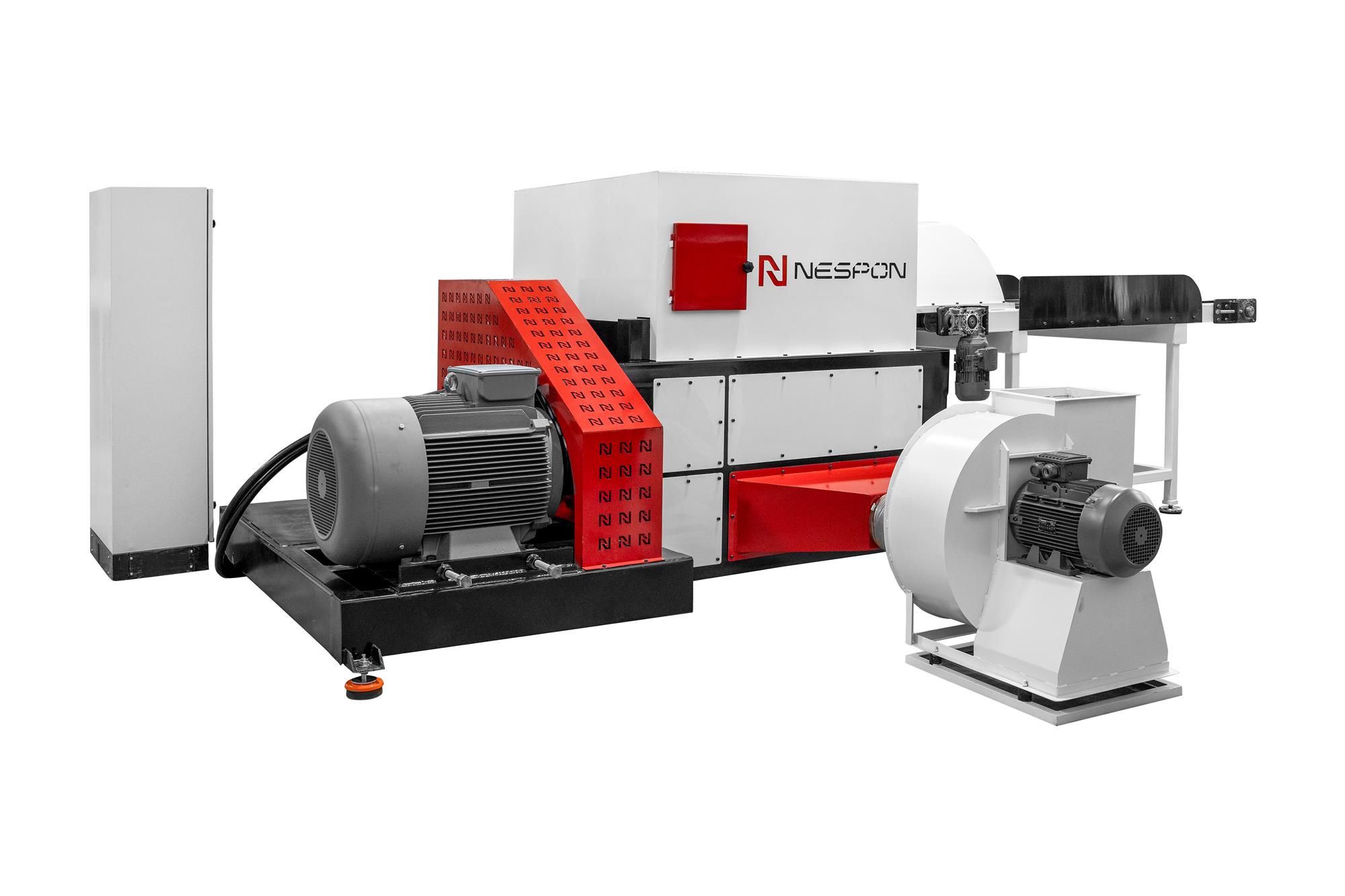

Powerful Drum System

Large-volume foams are easily processed with the 90 kW drum motor. An ideal solution for high-scale production.

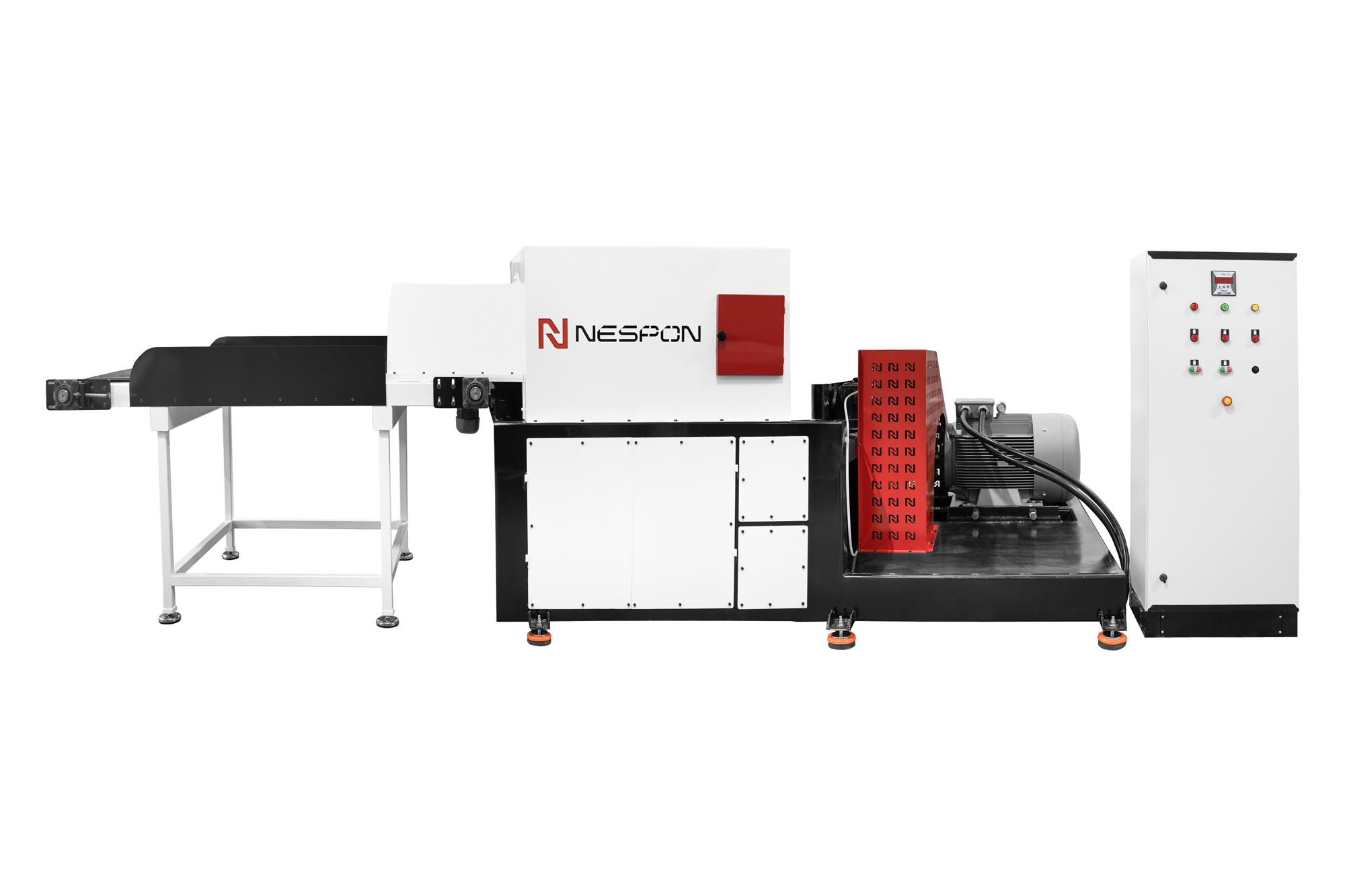

Adjustable Screen Mechanism

It offers shredding capability in various sizes with interchangeable screen diameters. It ensures that products are obtained in uniform sizes.

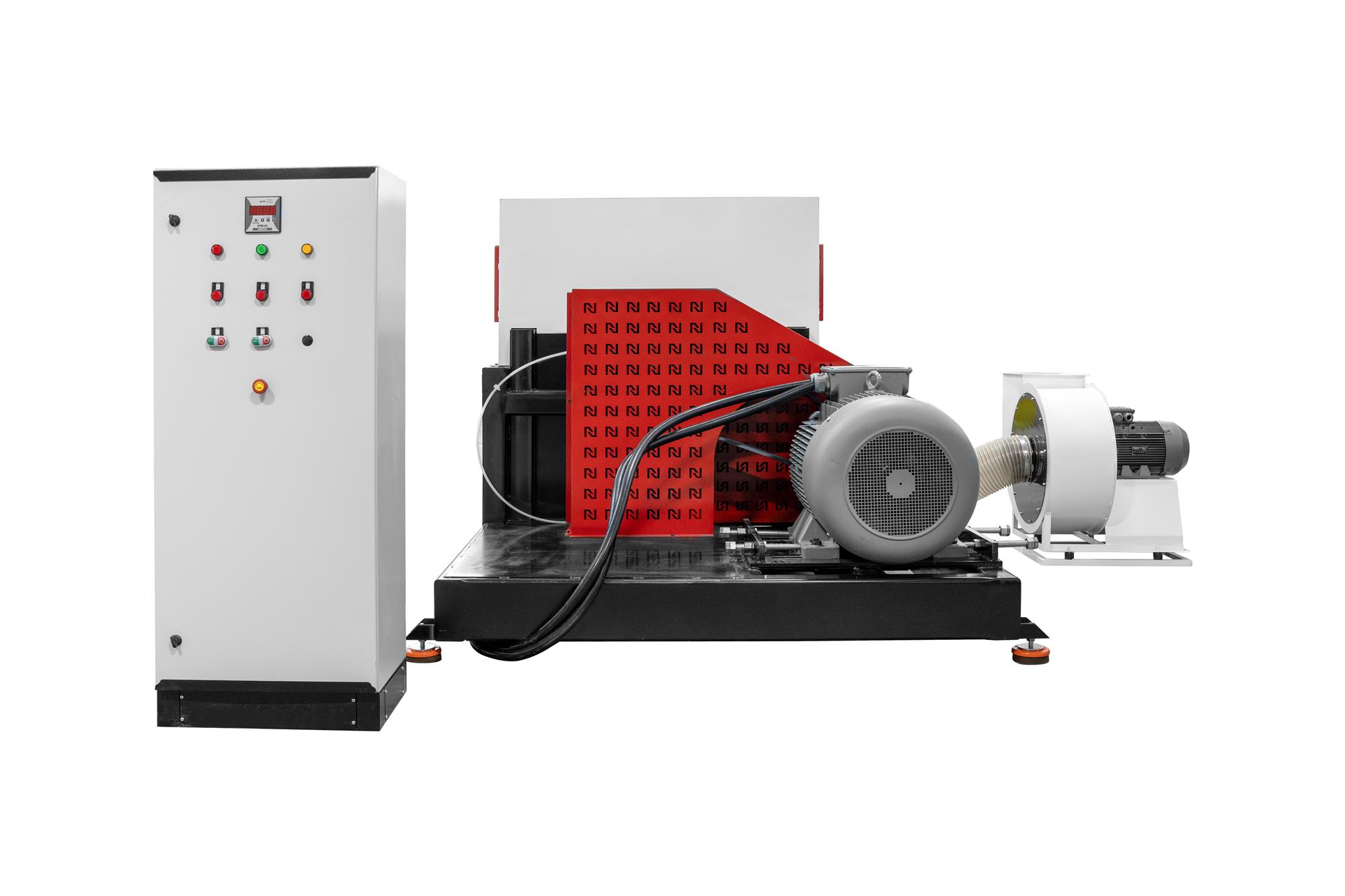

Industrial Control Panel

It reduces operator errors with an easy-to-use button panel. The ammeter system provides an efficient and safe working environment.

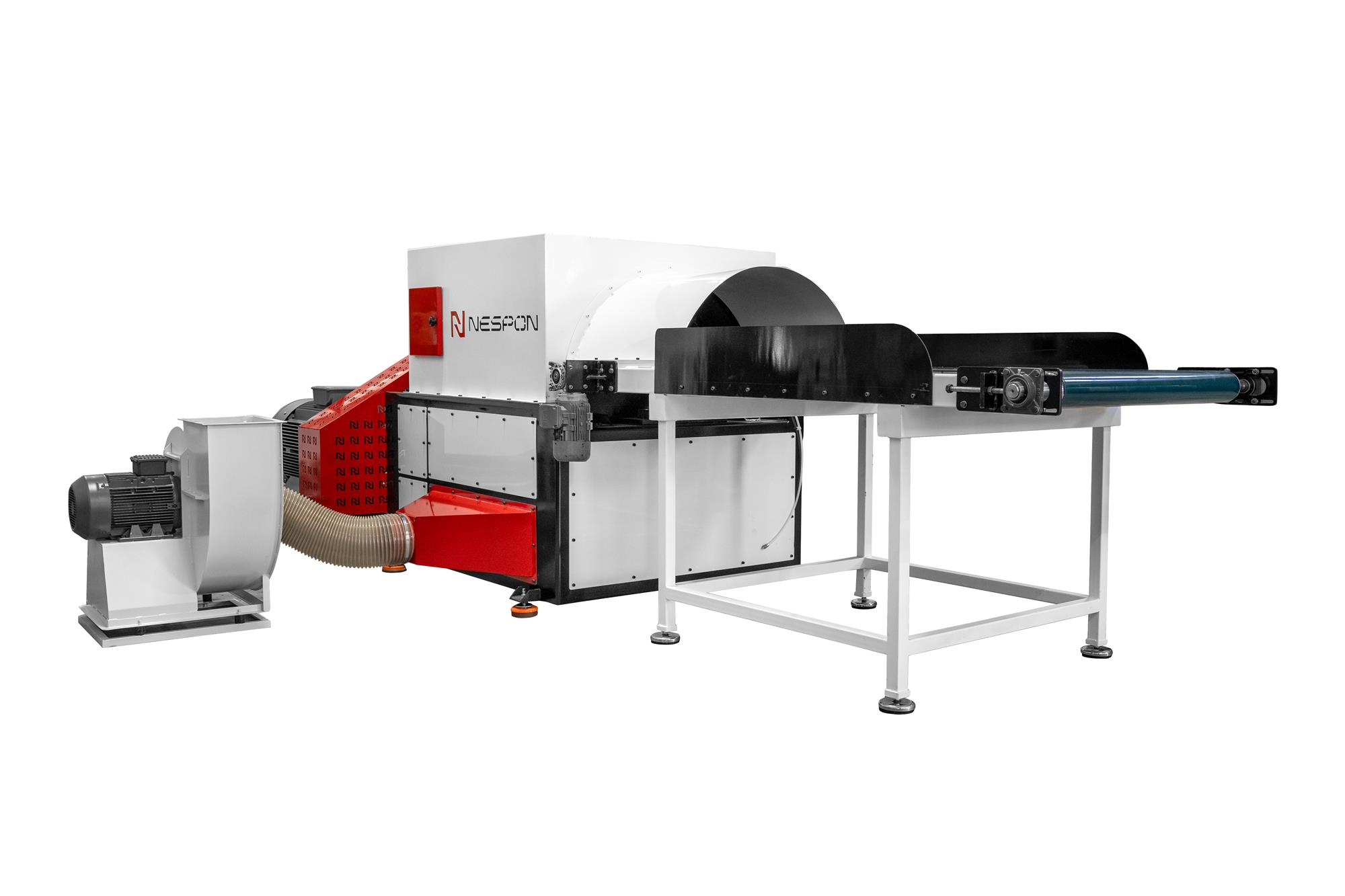

Compact and Durable Design

It delivers high performance within a 30 m² area. With its robust body, it operates reliably for many years.

View Gallery Foam Trimming Machine

Technical Details of the SHRED-X90

Unrivaled Power in Industrial Production, Undisputed Performance!

Dimensions	Q1000mm x 1200mm
Drum Movement Motor	90 kW, 1500 rpm Asynchronous Motor
Drum-Motor Drive System	Belt and Pulley Transmission
Belt Motor	0.75 kW 1500 rpm Asynchronous Motor
Belt Drive Reducer	ESV 50/40 Reducer
Bearings	NACHI-SKF-FAG
Drum	Pin Type System
Product Size Optimization	Adjustable Screen Diameters
Suction Fan Motor	7.5 kW 3000 rpm Asynchronous Motor
Control Unit	Button Control Panel
Electrical & Electronic Systems	Professional Series (Siemens, Eaton, Schneider)
Pulley System	Ø500 mm 6-Row Belt Phosphated Casting
Daily Capacity	5000 kg
Machine Weight	4800 kg
Power Consumption	98.25 kW
Working Height	2000 mm
Working Area	30 m²

Frequently Asked Questions About SHRED-X90

More Confidence and More Performance with Every Question.

How much foam can this machine process per day?

Its daily capacity is 5000 kg, making it ideal for high-volume production.

Is it possible to shred foams of different sizes?

Yes. Thanks to adjustable screen diameters, you can shred materials in different product sizes.

What is the energy consumption like?

The total power consumption is 98.25 kW. Current consumption can be monitored via an ammeter, and the efficient motor system ensures a high energy efficiency ratio.

How much space is required for this machine?

Yes. It operates within just 30 m² of space, and its compact design provides space-saving advantages.

What periodic maintenance is required?

Lubrication and inspection of bearings
Checking belt tension and wear
Inspection of electrical connections
Cleaning and performance check of motors and fans
Cleaning of screens and replacement when necessary
General cleaning and inspection of safety equipment
