CC-6500

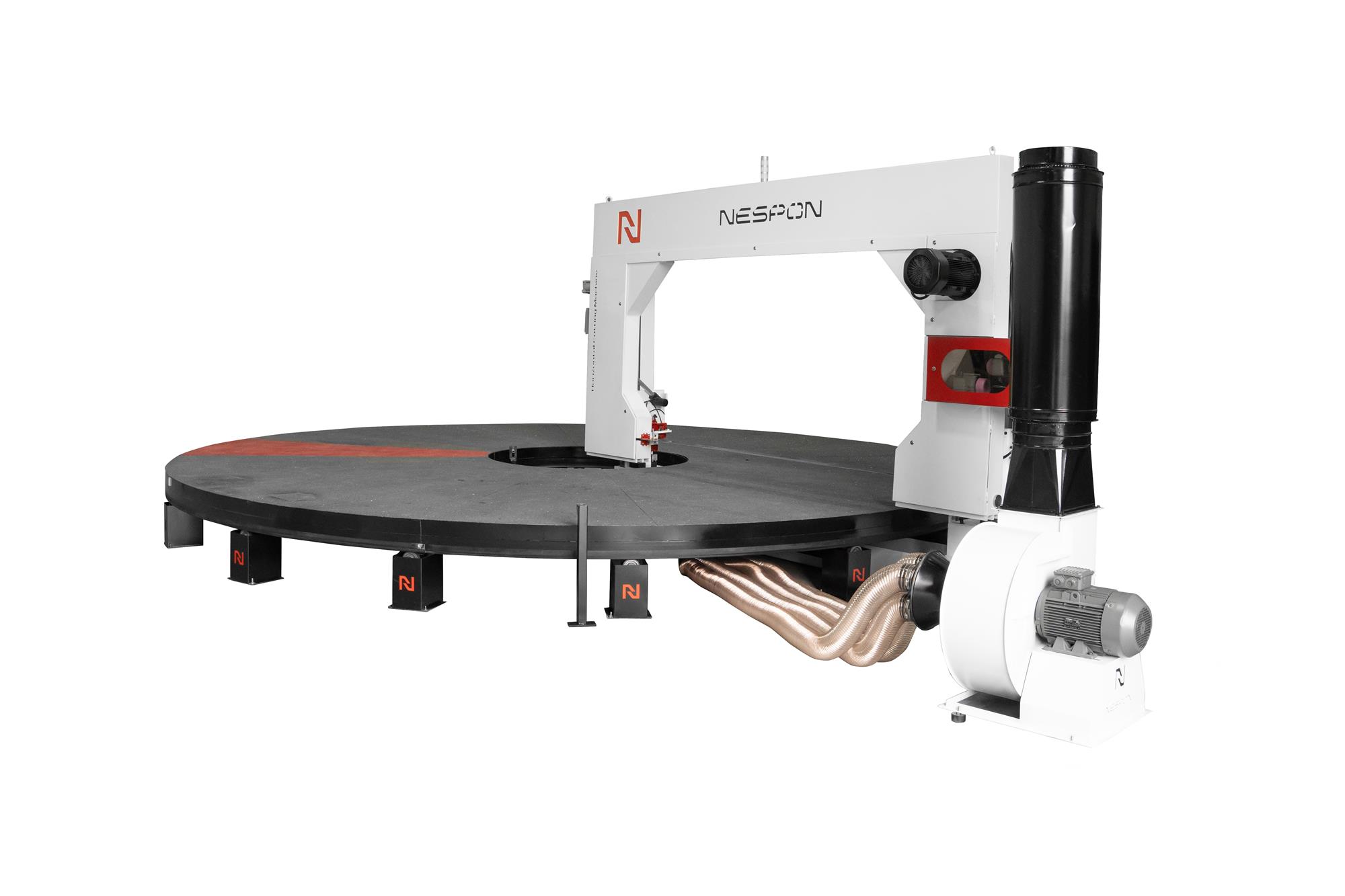

Circular Horizontal Foam Cutting Machine

Call Now Contact Us Fullscreen Mode

CC-6500 Overview

The Circular Horizontal Foam Cutting Machine increases your production efficiency by providing long-lasting performance, high-precision cutting, fast operation, and low material waste.

Large Working Area

2650 x 6500 x 1350 mm

Touch Control Panel

PLC

High Production Speed

Bridge Movement: 40 m/min

Long-Lasting Electronic Brands

Siemens, Eaton, Schneider

Material Fixing Guarantee

7.5 kW 3000 RPM
Table Vacuum Motor

Blade (Knife) Dimensions

2600 mm

Blade Drive Motor

3 kW 1000 rpm
Asynchronous Motor

Working Area

72 m2

Power Consumption

17 KW

Table Surface System

SiC Coated 3 mm Perforated Sheet

Operational Efficiency

Optimized Automatic Table Rotation System

Angle

Automatic Angle Optimization System According to Dimensions

Key Highlights of the CC-6500

Smart Cutting Technology that Increases Efficiency and Simplifies Production.

Wide and Flexible Cutting Area

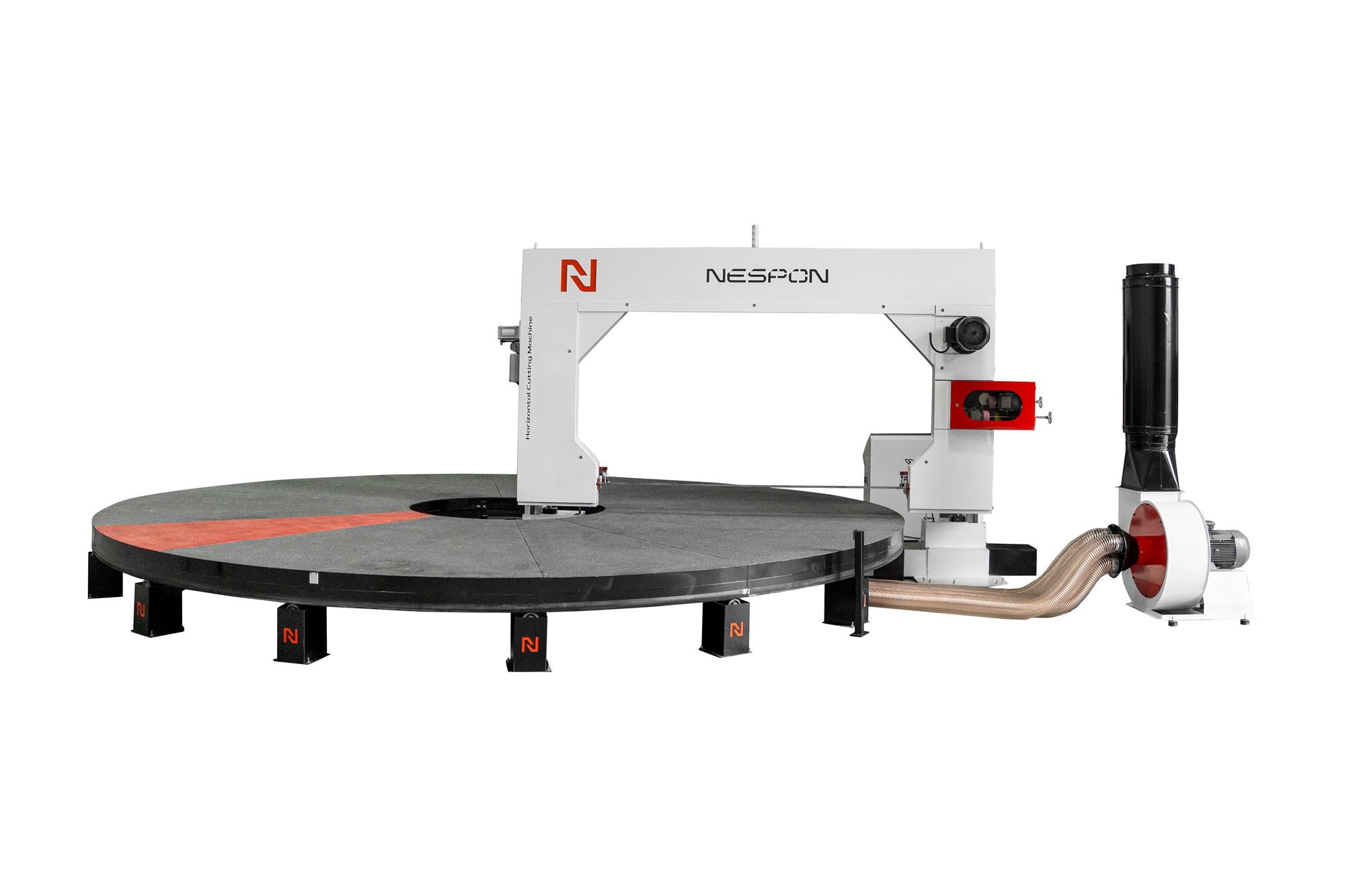

The large working area of 2650 x 6500 mm allows easy processing of foams in various sizes. It especially facilitates the operator’s work in high-volume production and reduces production time.

High-Speed and Precision Cutting

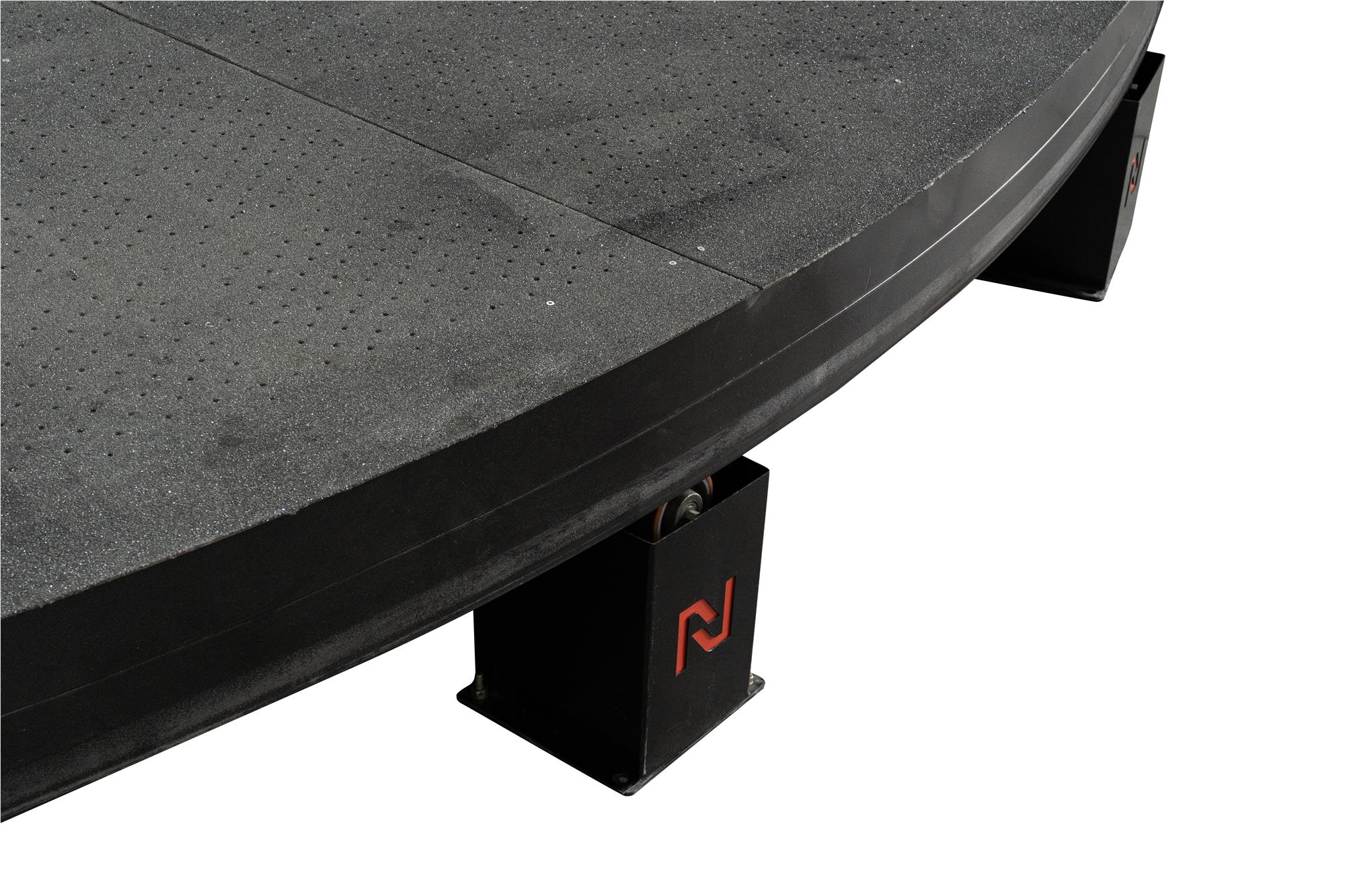

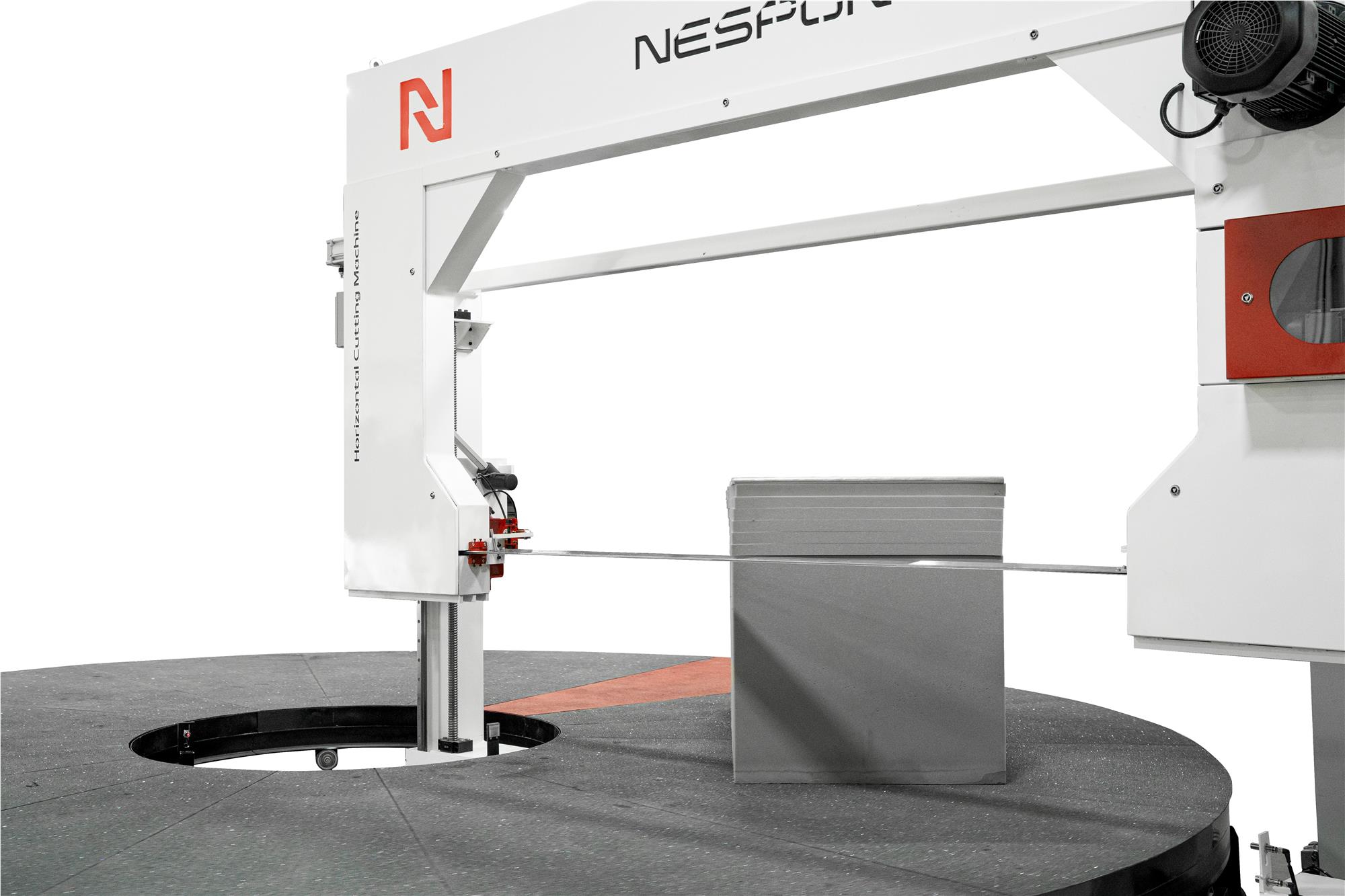

Thanks to a 40 m/min bridge movement speed and an optimized automatic table rotation system, it is fully compatible with high-speed production processes. The SiC-coated table surface and vacuum system prevent foam from slipping and increase cutting precision. This results in improved cutting quality and reduced material waste.

Smart and Touch Control

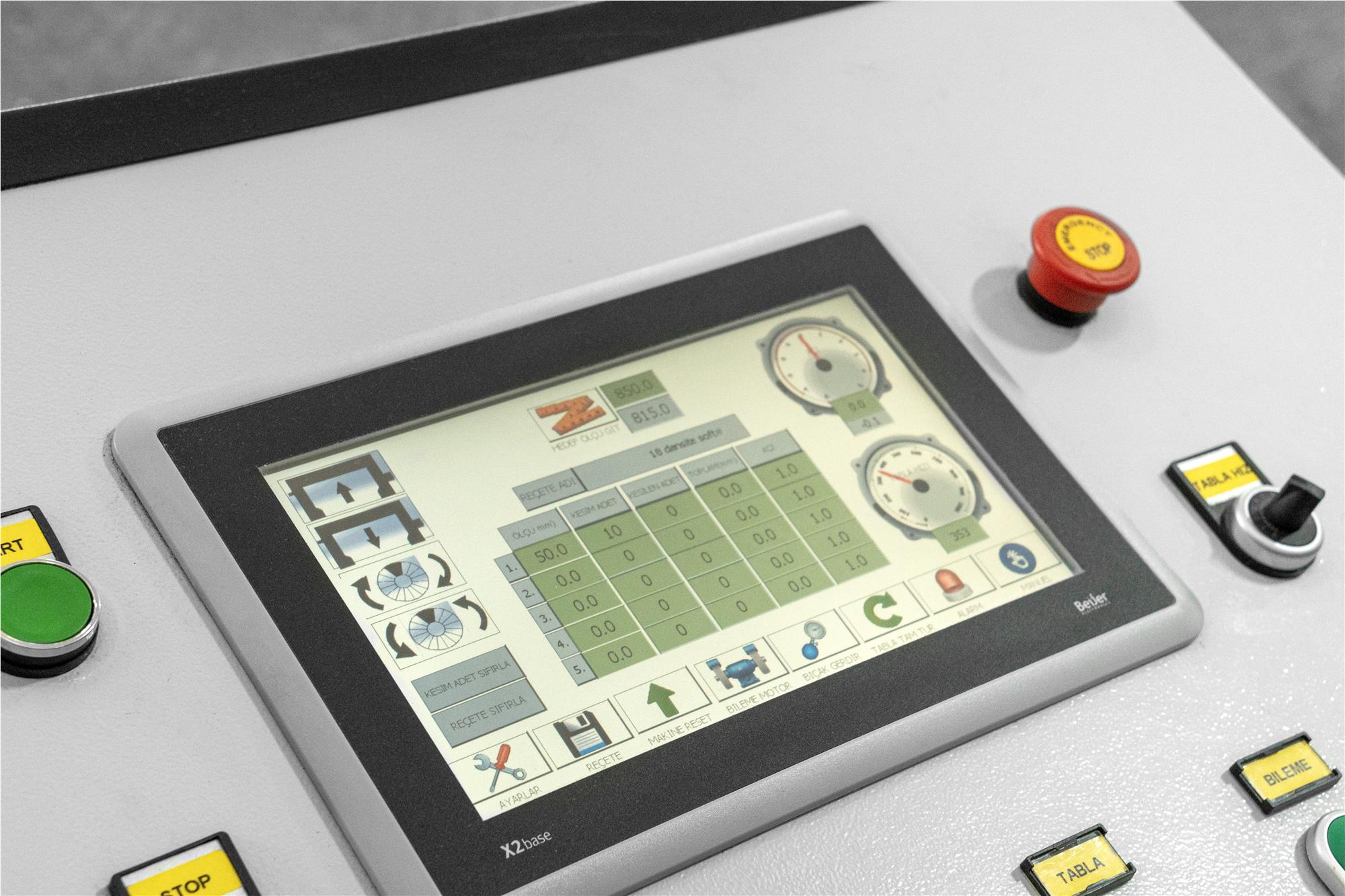

With the PLC touchscreen panel, all machine functions can be easily accessed. Thanks to its user-friendly interface, training time is reduced and operator errors are minimized. The recipe management system makes production processes more efficient and better controlled.

Industrial-Grade Electrical System

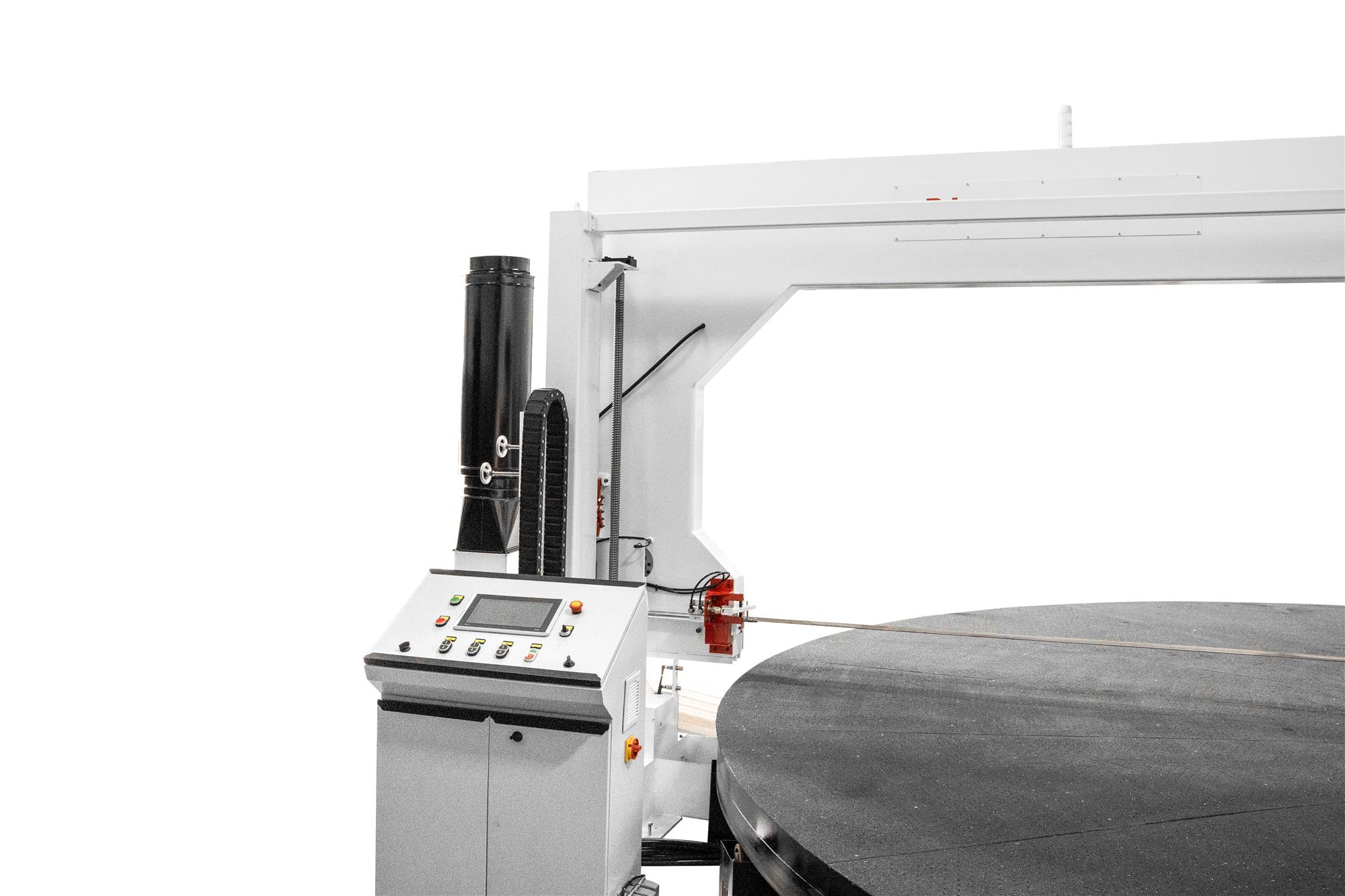

The electrical infrastructure equipped with world-class brands such as Siemens, Eaton, and Schneider provides maximum safety. Thanks to high-performance components, system failures are minimized.

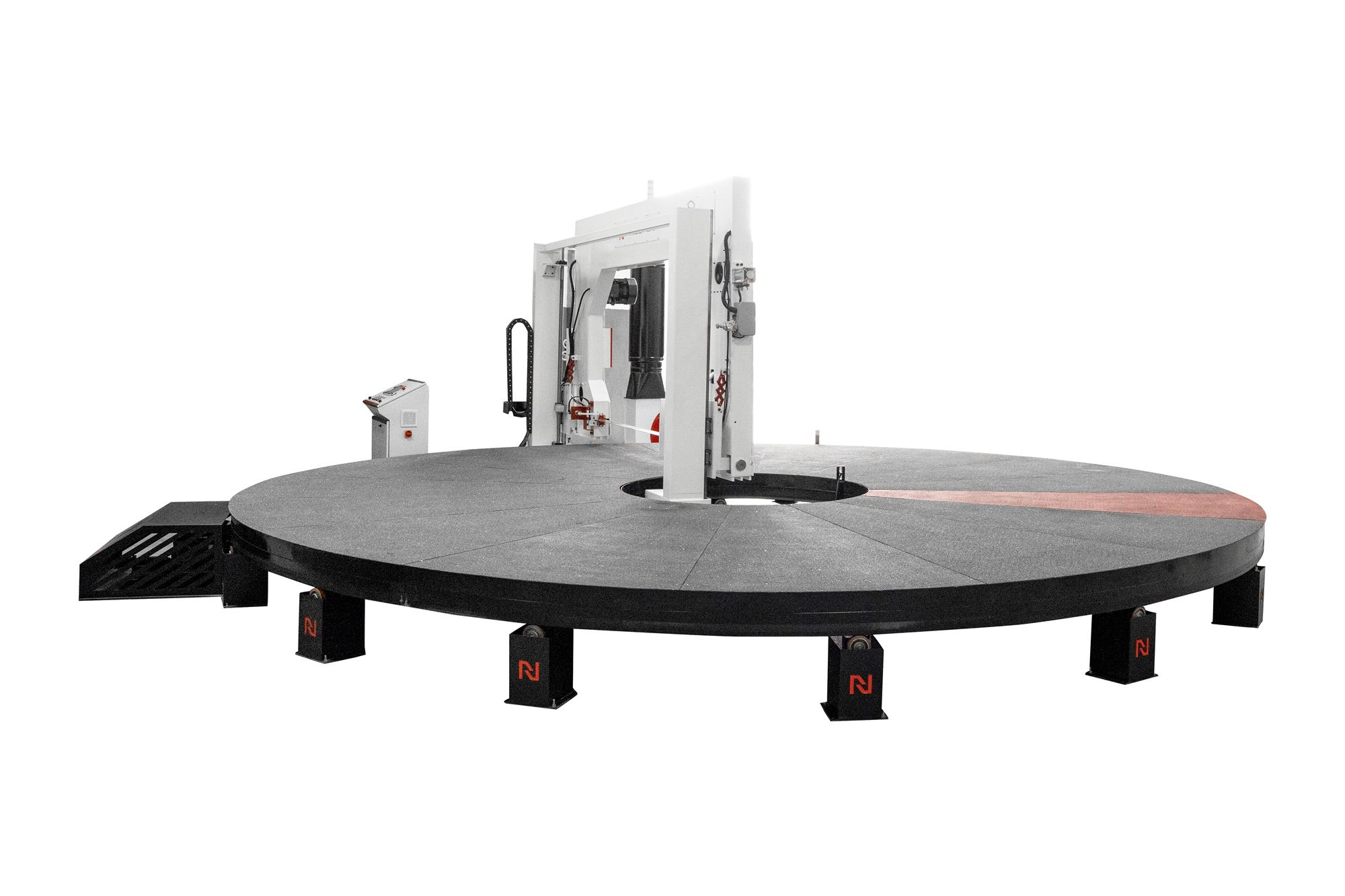

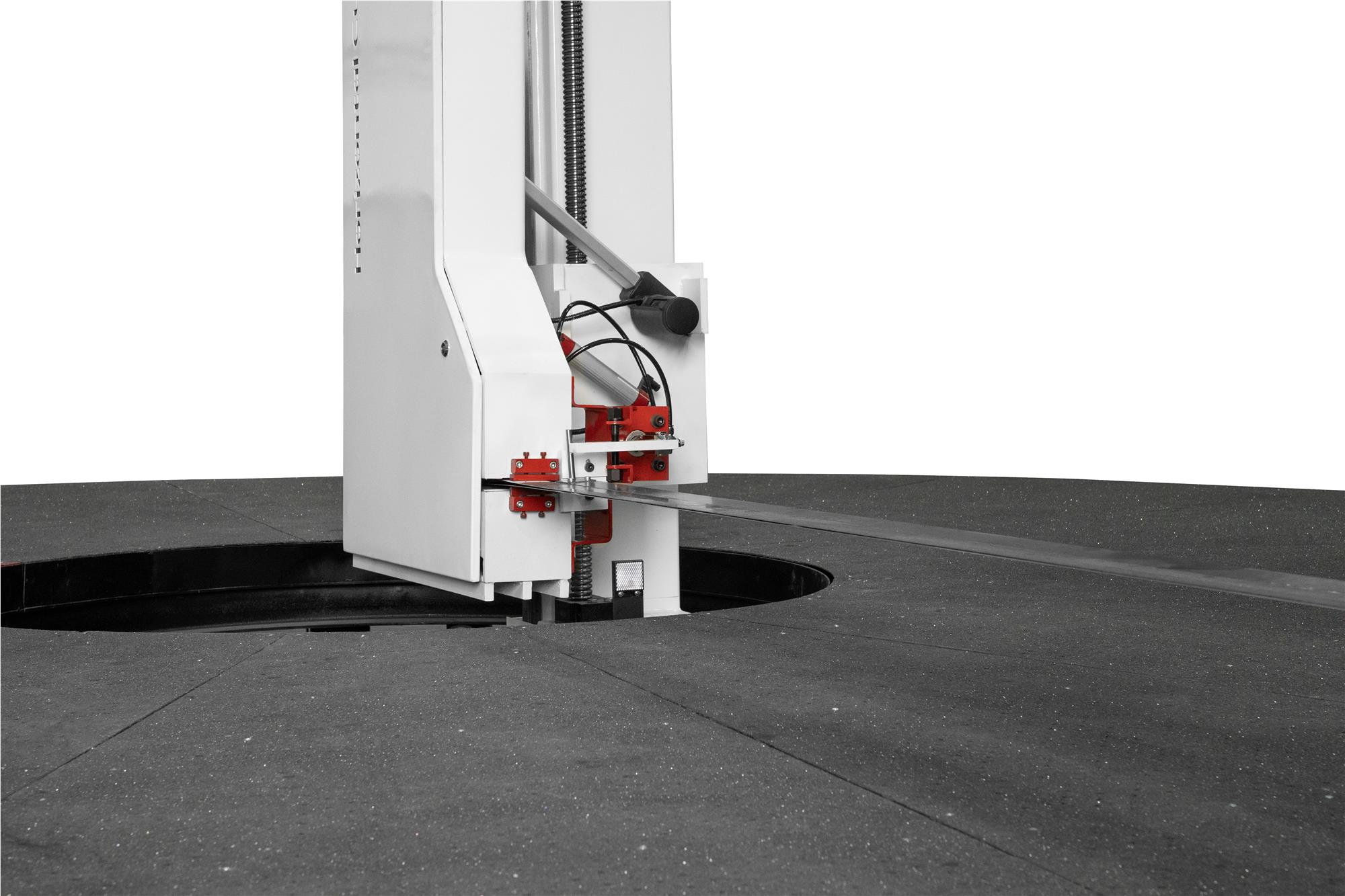

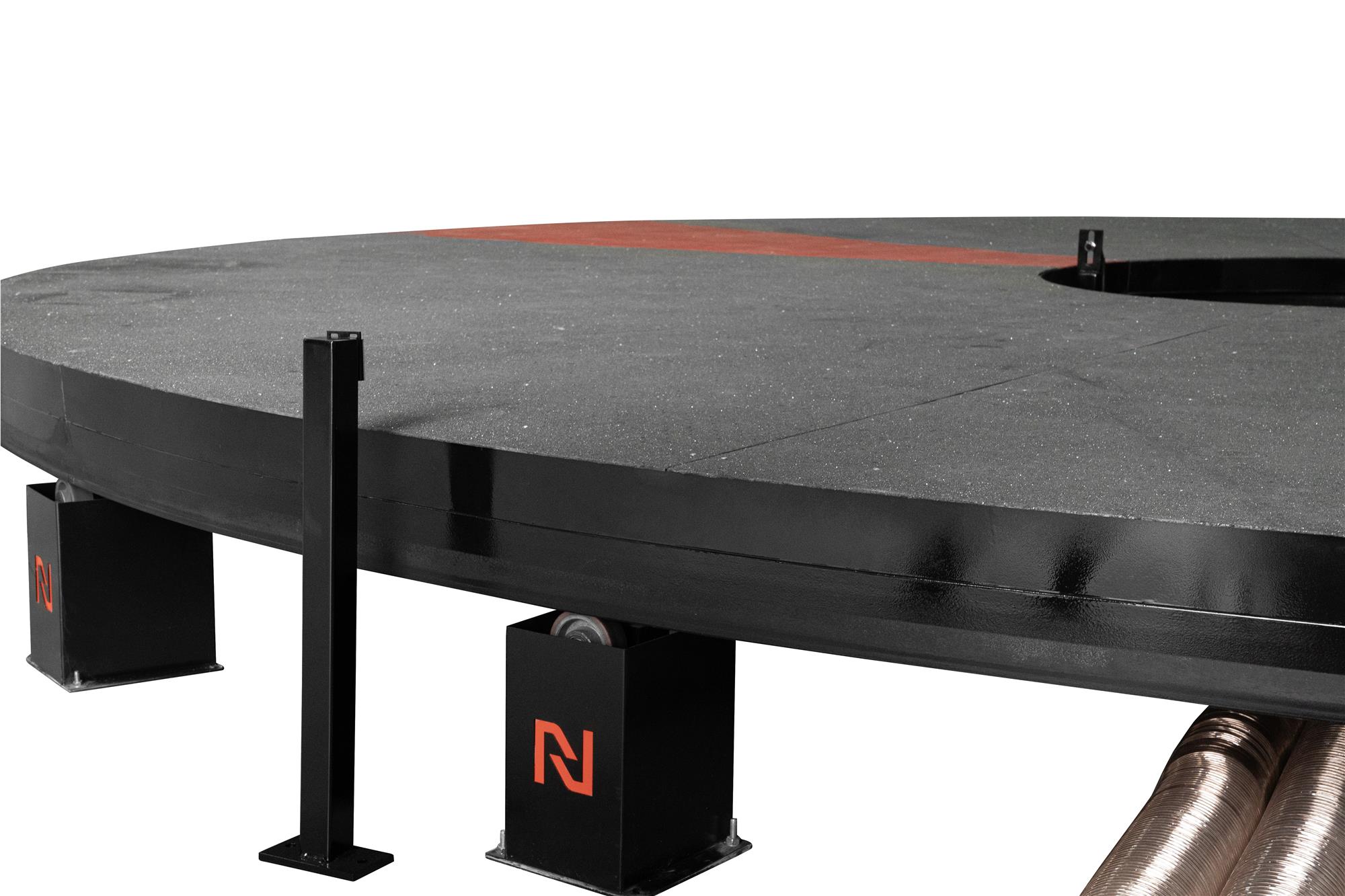

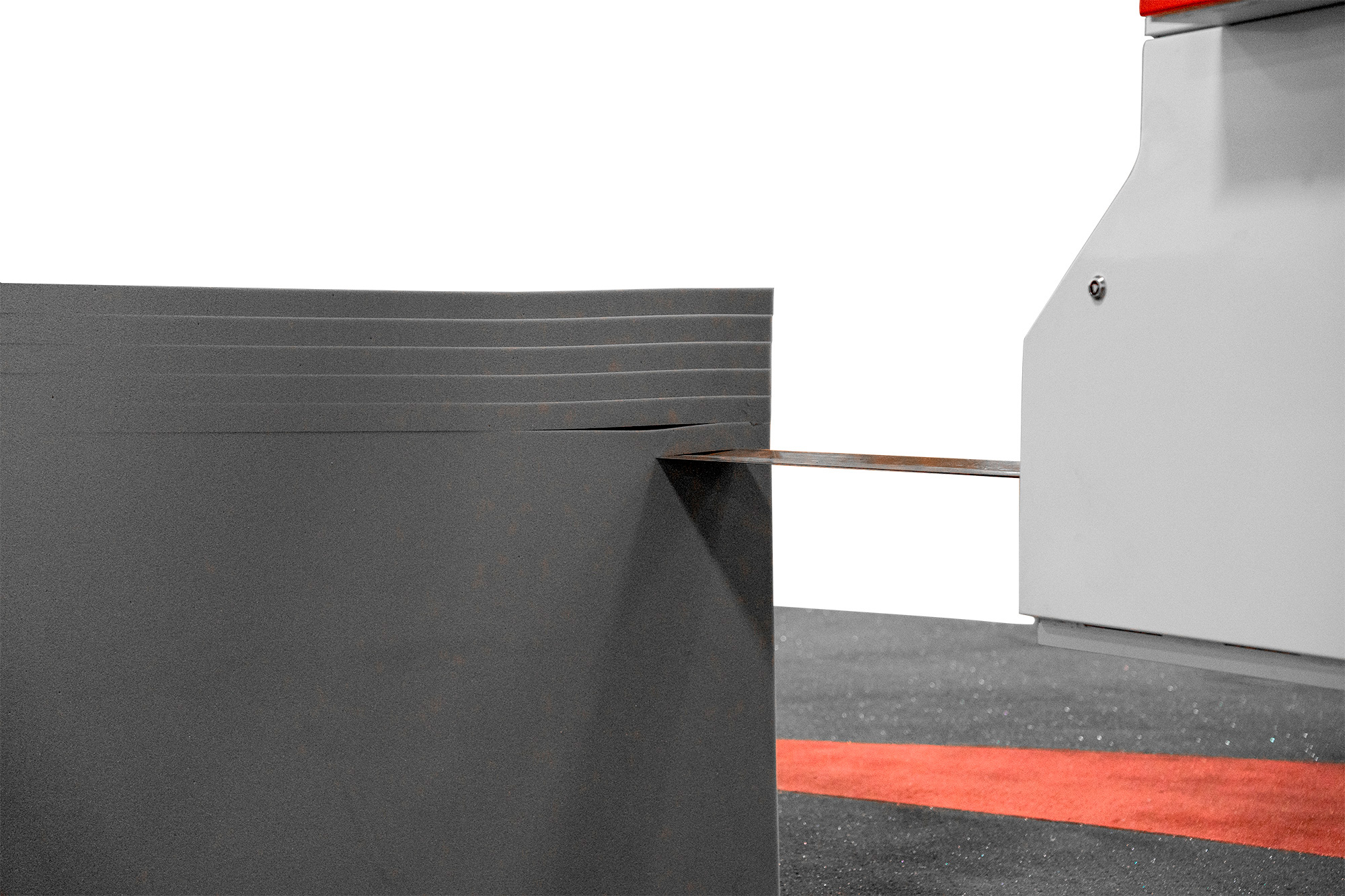

CC-6500 with photos

Hidden power in the details, maximum precision in cutting.

View Gallery Circular Horizontal Foam Cutting Machine

Technical Specifications of CC-6500

Effortless Control, Maximum Performance!

Working Area	2650 x 6500 x 1350 MM
Bridge Movement Servo Motor	2.3KW, 2000 rpm Servo Motor
Bridge Movement System	Safety Gear Transmission System
Blade Drive Motor	3KW, 1000 rpm Asynchronous Motor
Bridge Movement Reducer	1/20 Planetary Reducer Kofon
Bridge Rails and Carriages	35 Hiwin Brand
Knife	Ground Swedish Steel
Knife Size	2600 MM
Blade Tensioning and Sharpening Motor Systems	Pneumatic Piston System Control
Bridge Movement Ball Screw System	40/10 Ball Screw Hiwin Brand
Table Drive Motor and Reducer	ESV 110 3 KW Asynchronous Motor
Table Surface System	SiC Coated 3MM Perforated Sheet
Table Vacuum Motor	7.5 KW 3000 rpm Asynchronous Motor
Control Unit	PLC Touch Control Panel
Angle System	Automatic Bridge Angle Adjustment with Accumulator
Electrical & Electronic Systems	Professional Series (Siemens, Eaton, Schneider)
Pulley System	Ø400 MM PU Coated Phosphated Cast
Pulley Bearing System	SKF, FAG, NACHI, TIMKEN High-Speed Bearings
Bridge Movement Speed	No-load Speed: Max 40 M/min
Sharpening Motors	0.18 KW, 3000 rpm Asynchronous (2 Units)
Sharpening Dust Extraction Unit	0.18 KW, 3000 rpm Asynchronous Fan
Power Consumption	17 KW
Working Height	4500 MM
Operating Area	72 m²

CC-6500 – Frequently Asked Questions

More Confidence in Every Question, More Performance.

Can it cut large foam blocks?

Yes. Thanks to its large working area of 2650 x 6500 x 1350 mm, you can easily cut large-sized foam blocks. At the same time, you can process small foam pieces to utilize scrap material and achieve maximum efficiency. In this way, both mass production and cost-efficient cutting operations can be carried out on a single machine.

How does the cutting speed affect my production time?

With a maximum 40 m/min bridge travel speed and an optimized table rotation system, it provides significant time savings in high-paced production.

Does the cutting quality decrease over time?

No. Thanks to the automatic blade sharpening system, the blades remain sharp at all times, ensuring consistent quality.

Is it difficult to use?

No. With a PLC touchscreen panel offering multiple language options, all controls are easy, fast, and user-friendly.

Is the machine’s electrical system reliable?

Yes. It is equipped with global brands such as Siemens, Eaton, and Schneider; ensuring long service life and high resistance to malfunctions.
