BDX-200

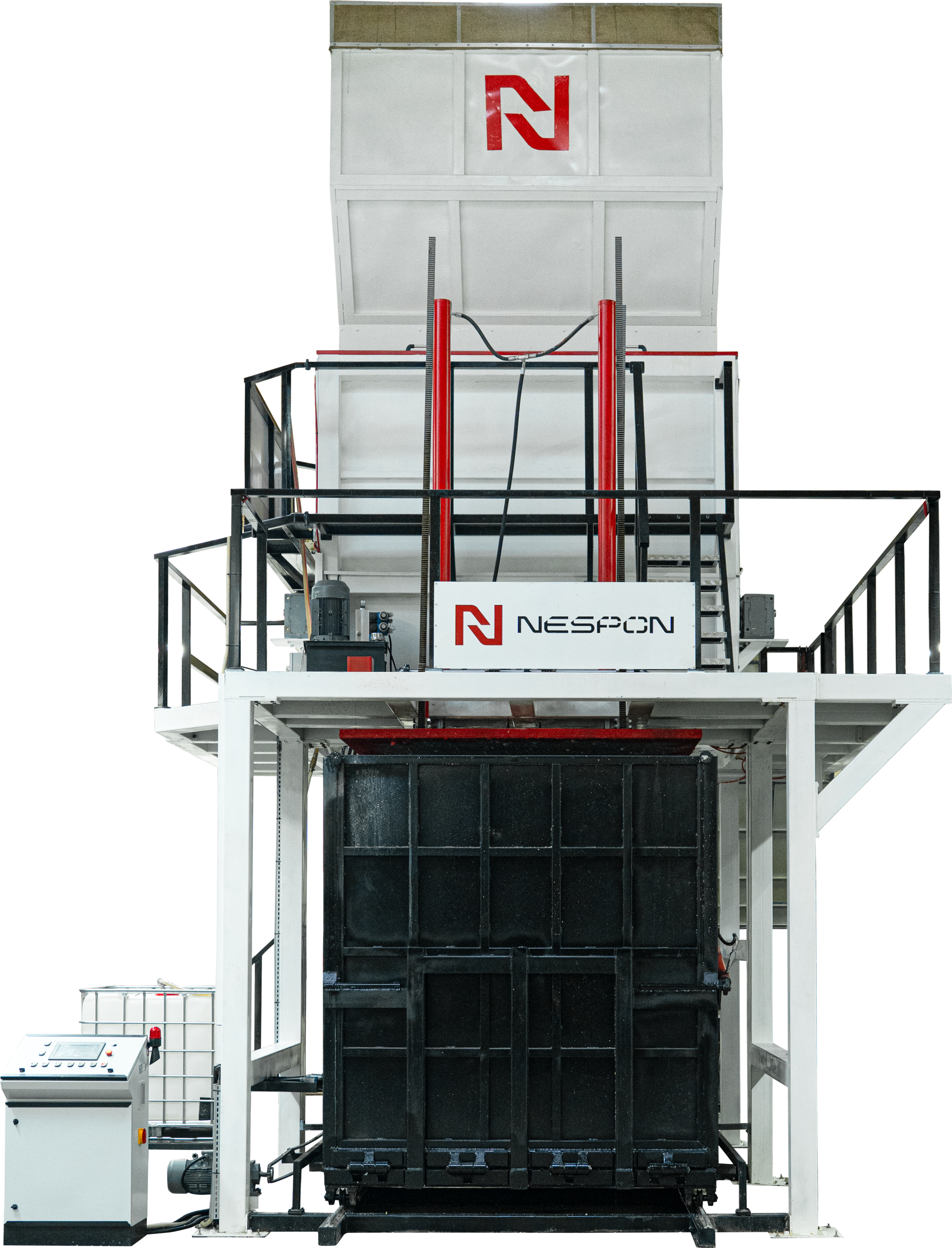

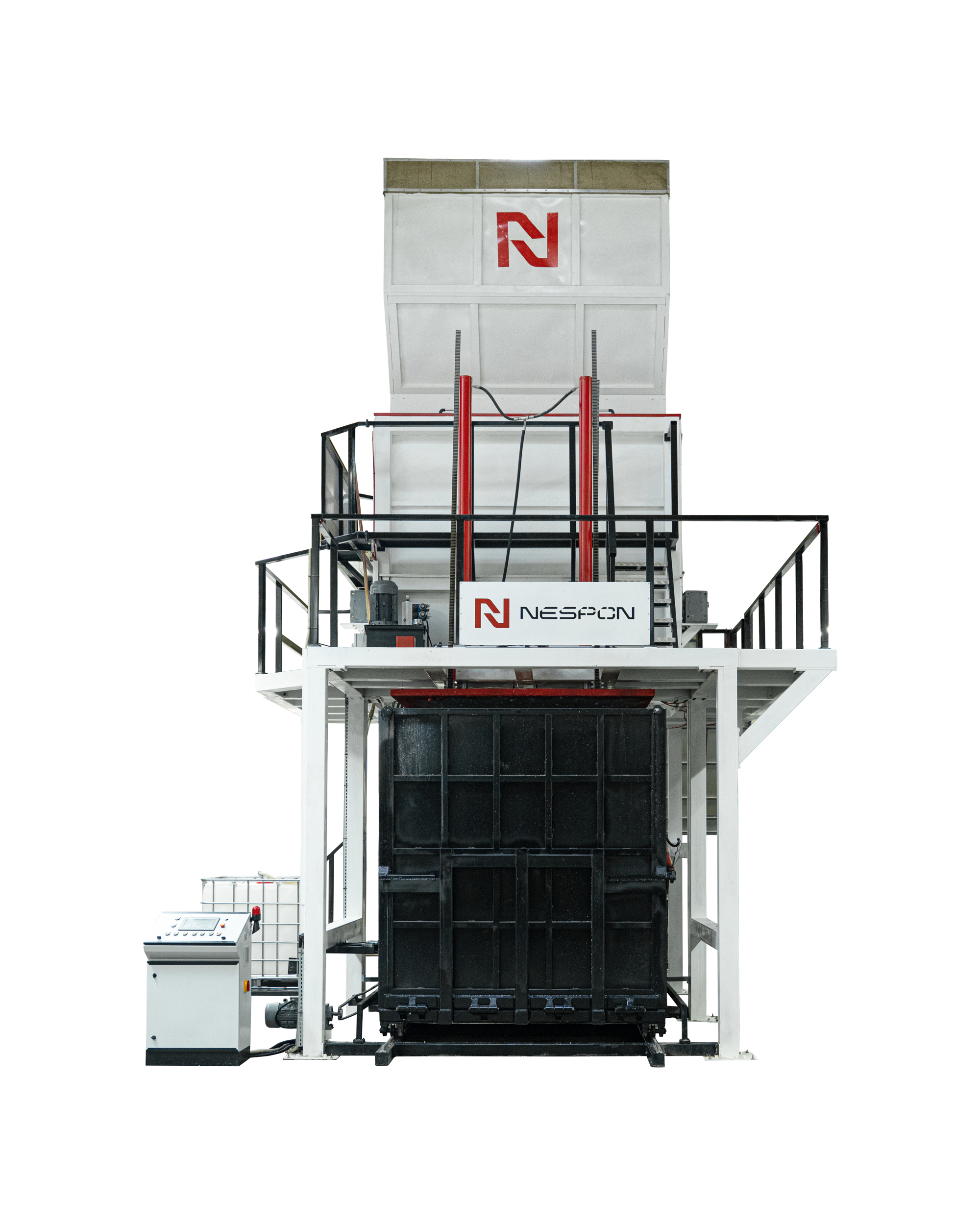

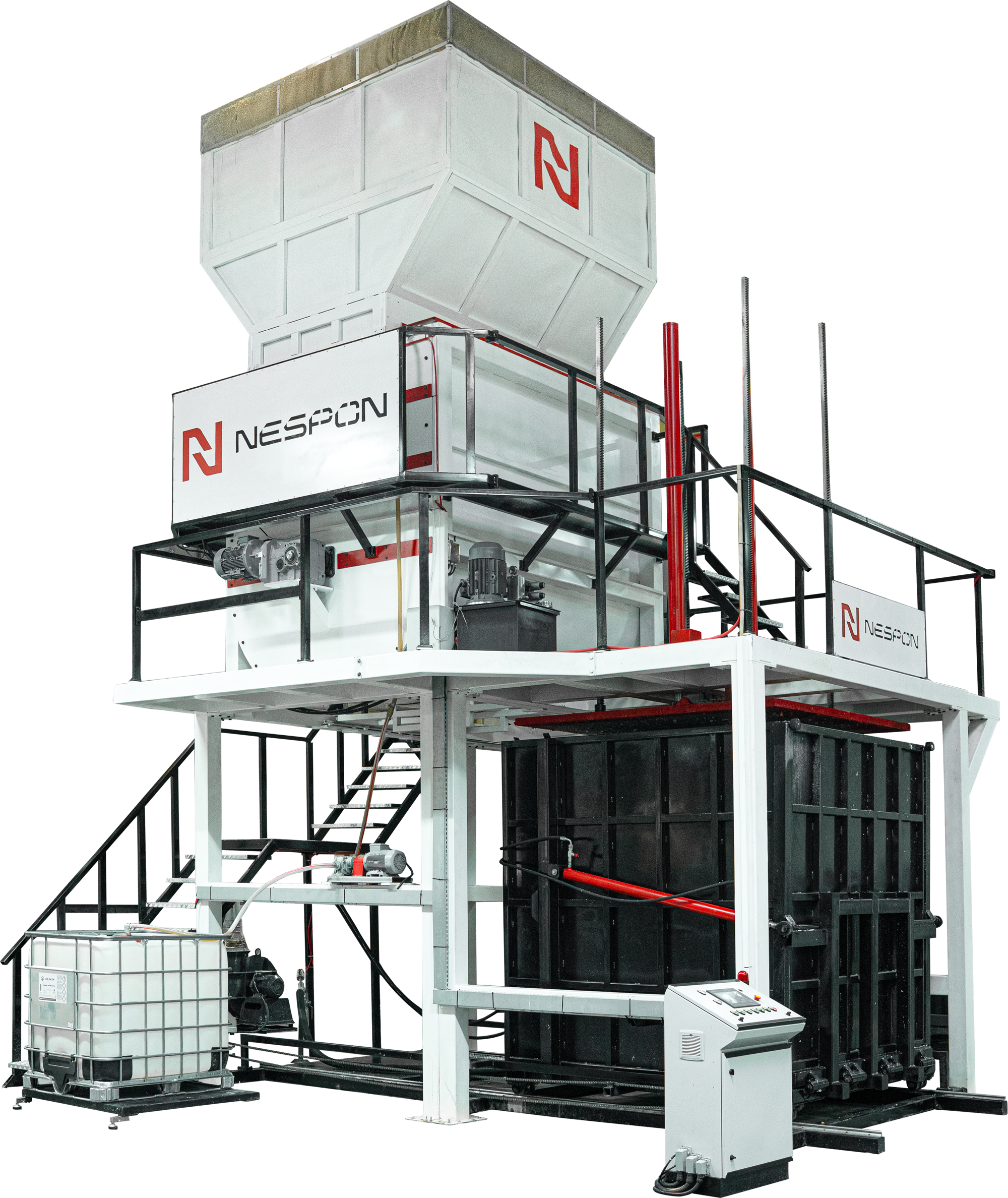

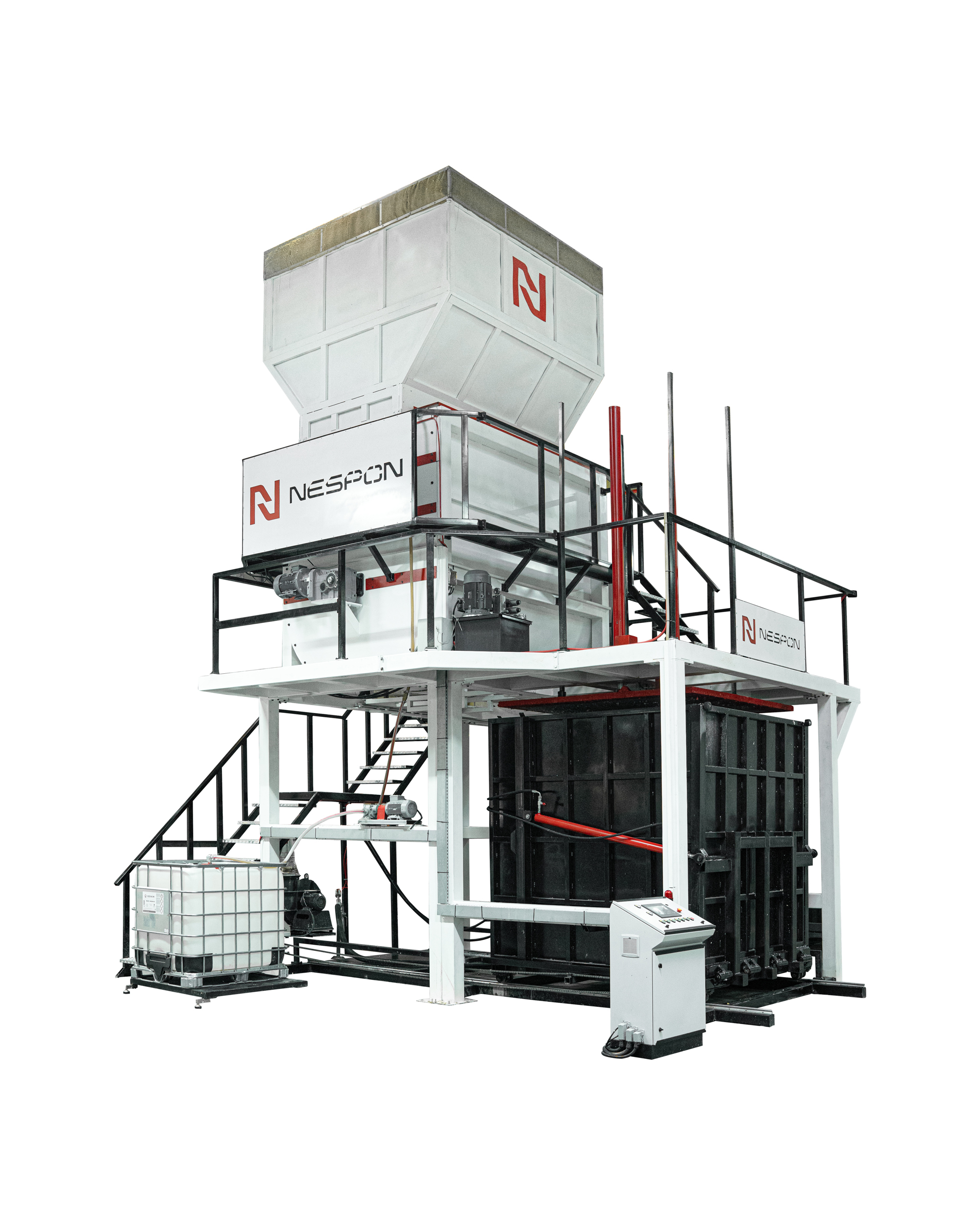

Bondex Foam Casting Machine

Call Now Contact Us Fullscreen Mode

BDX-200 Overview

With its high pressure power, homogeneous mixing system, and automatic PLC control unit, it ensures maximum efficiency and perfect production. Thanks to its industrial durability, it provides long-lasting, fast, and continuous production of granulated foam.

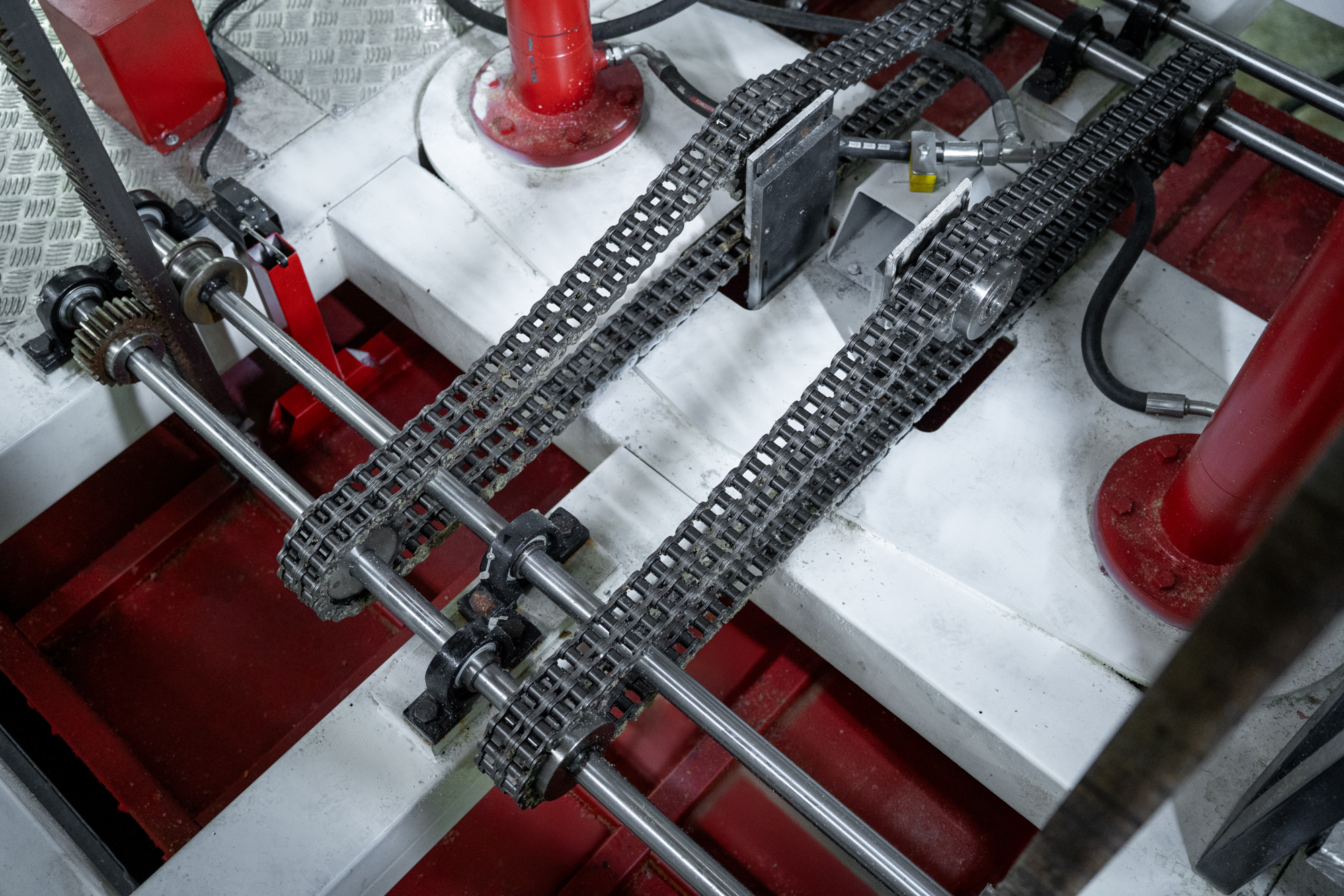

Mold Movement System

Chain and Gear System

High Pressing Force

25 Tons

Control System

Touchscreen PLC Panel

Automatic Weighing System

Stable Production

Daily Production Capacity

250 m3

Power Consumption

36.5 kW

Key Features of the BDX-200

High Pressure, Stable Production, and Perfect Results.

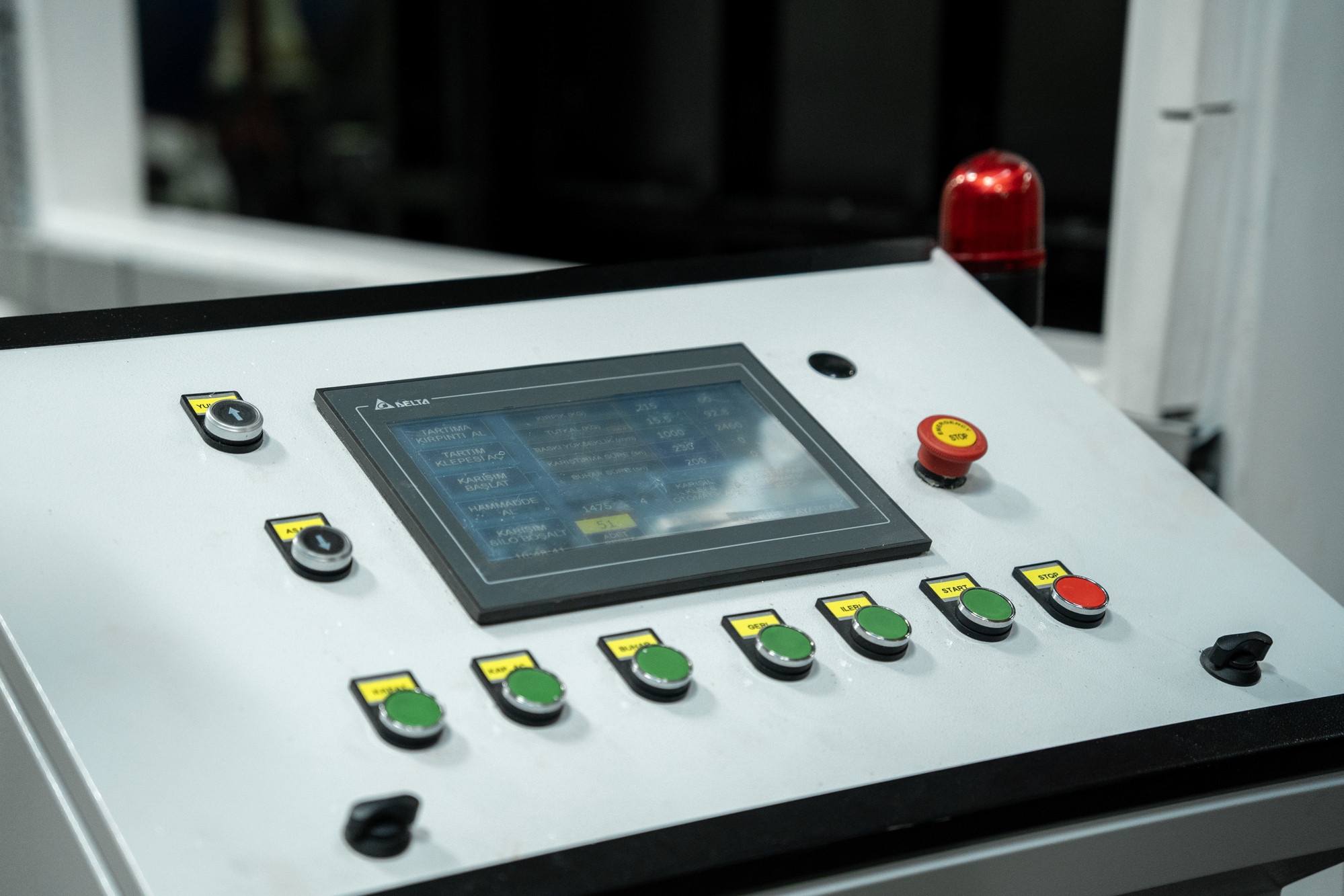

Smart PLC Control Technology

All processes are managed from a single point via the touchscreen PLC panel. Thanks to its user-friendly interface, it enables fast and error-free operation.

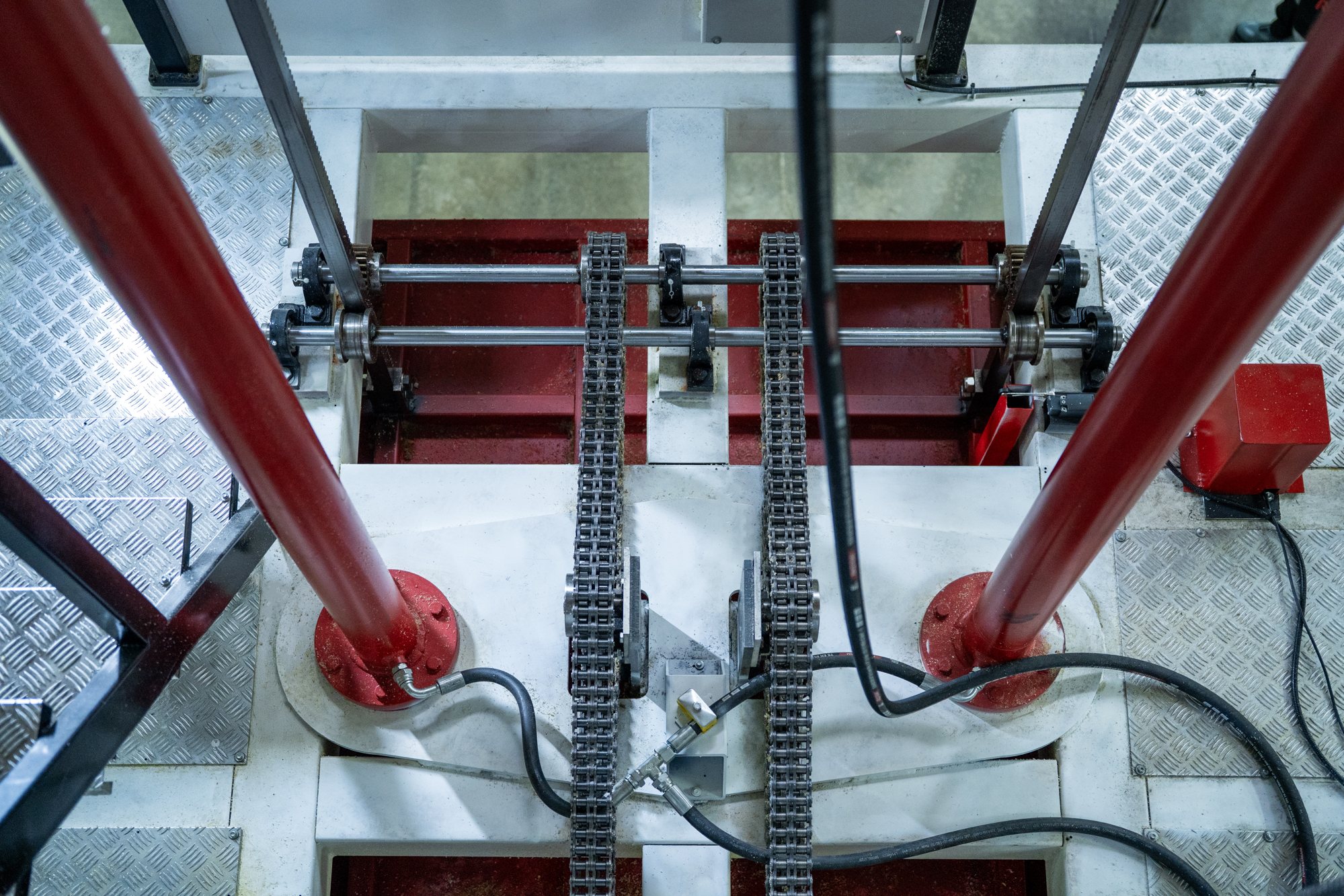

Powerful and Stable Press System

Thanks to its 25-ton hydraulic pressure force, it compresses the material evenly and firmly. It maintains quality standards even in high-density production.

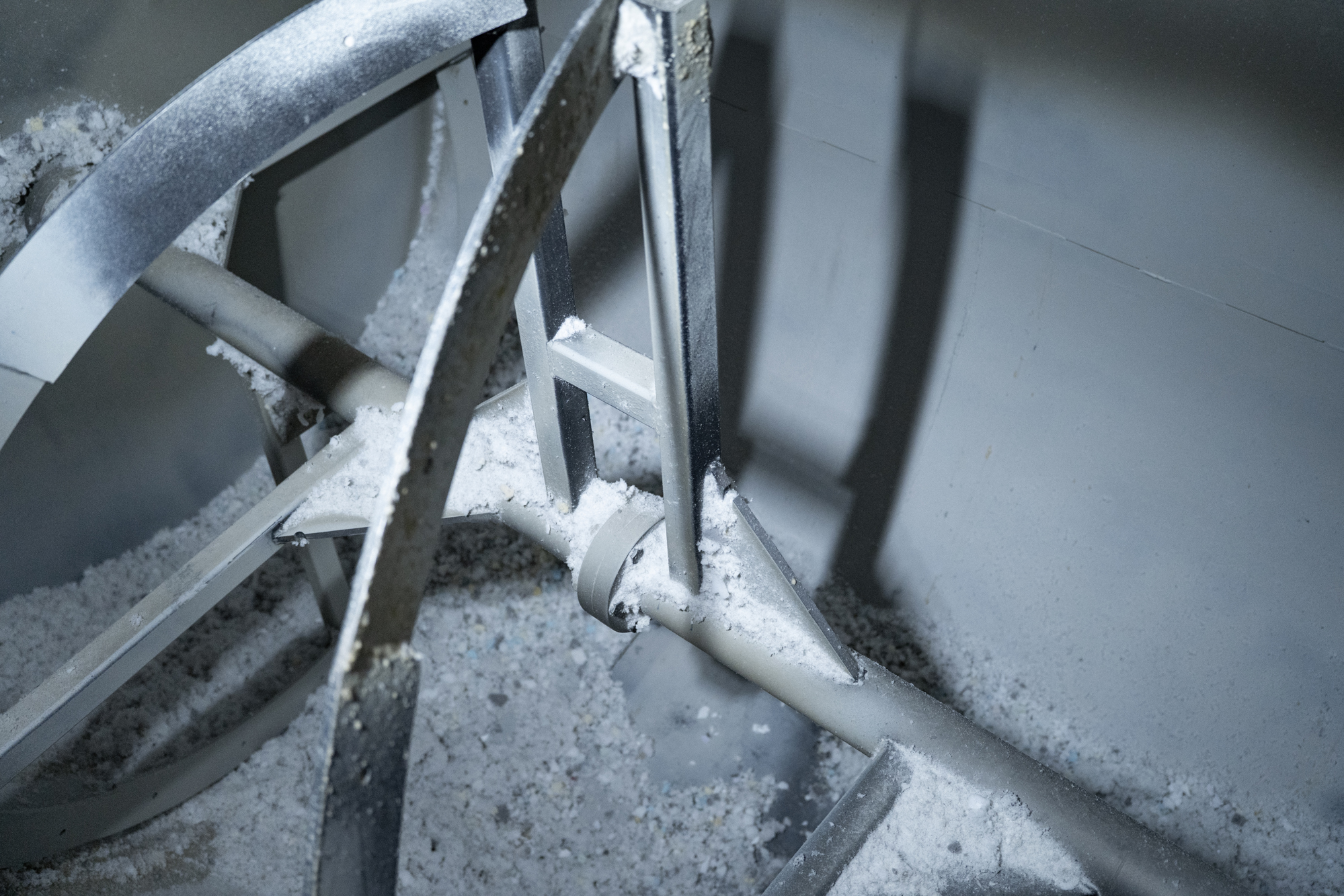

Fully Automatic Mixing and Weighing

With the automatic weighing system, it ensures precise mixing according to the recipe. It minimizes operator error and provides continuity in production.

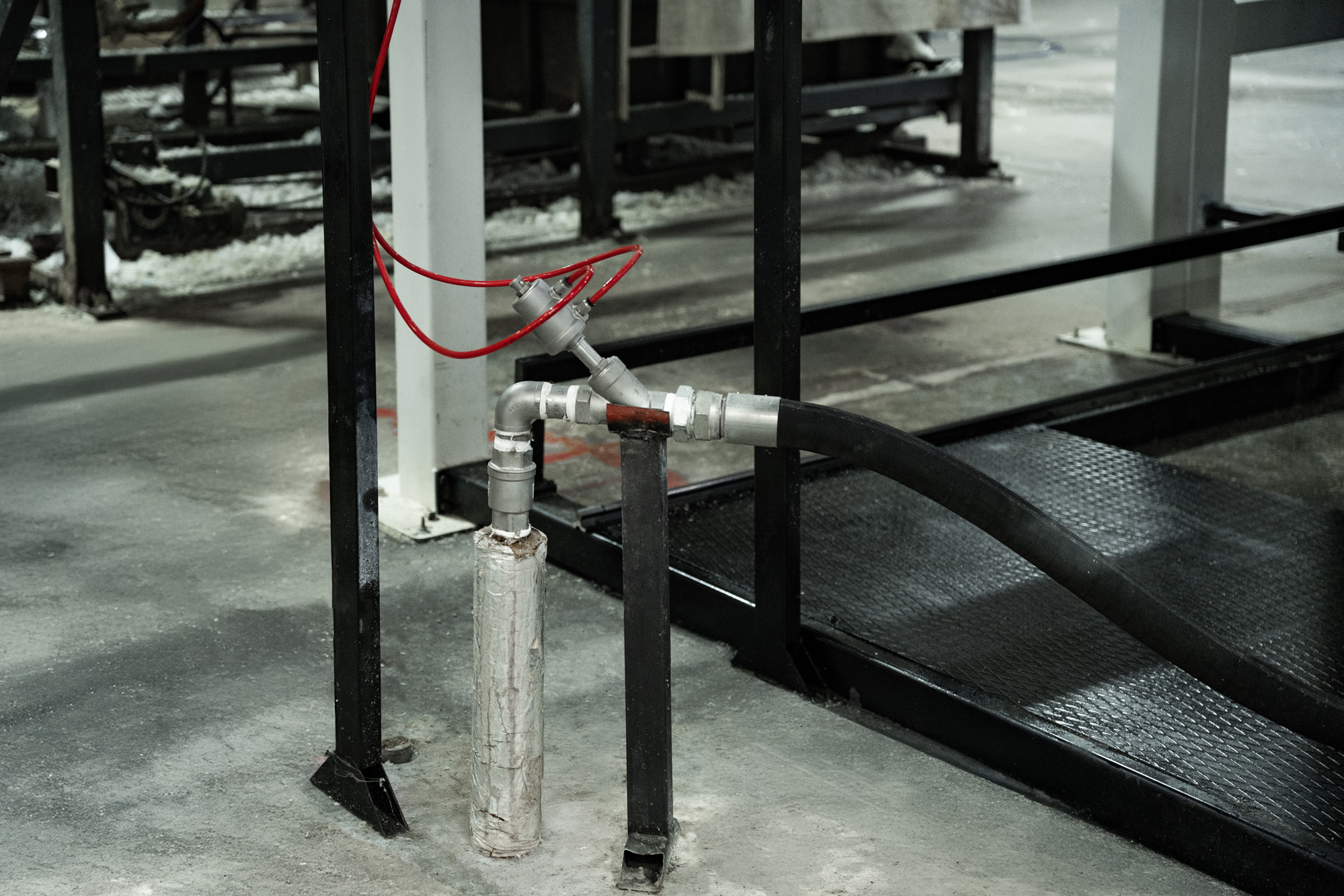

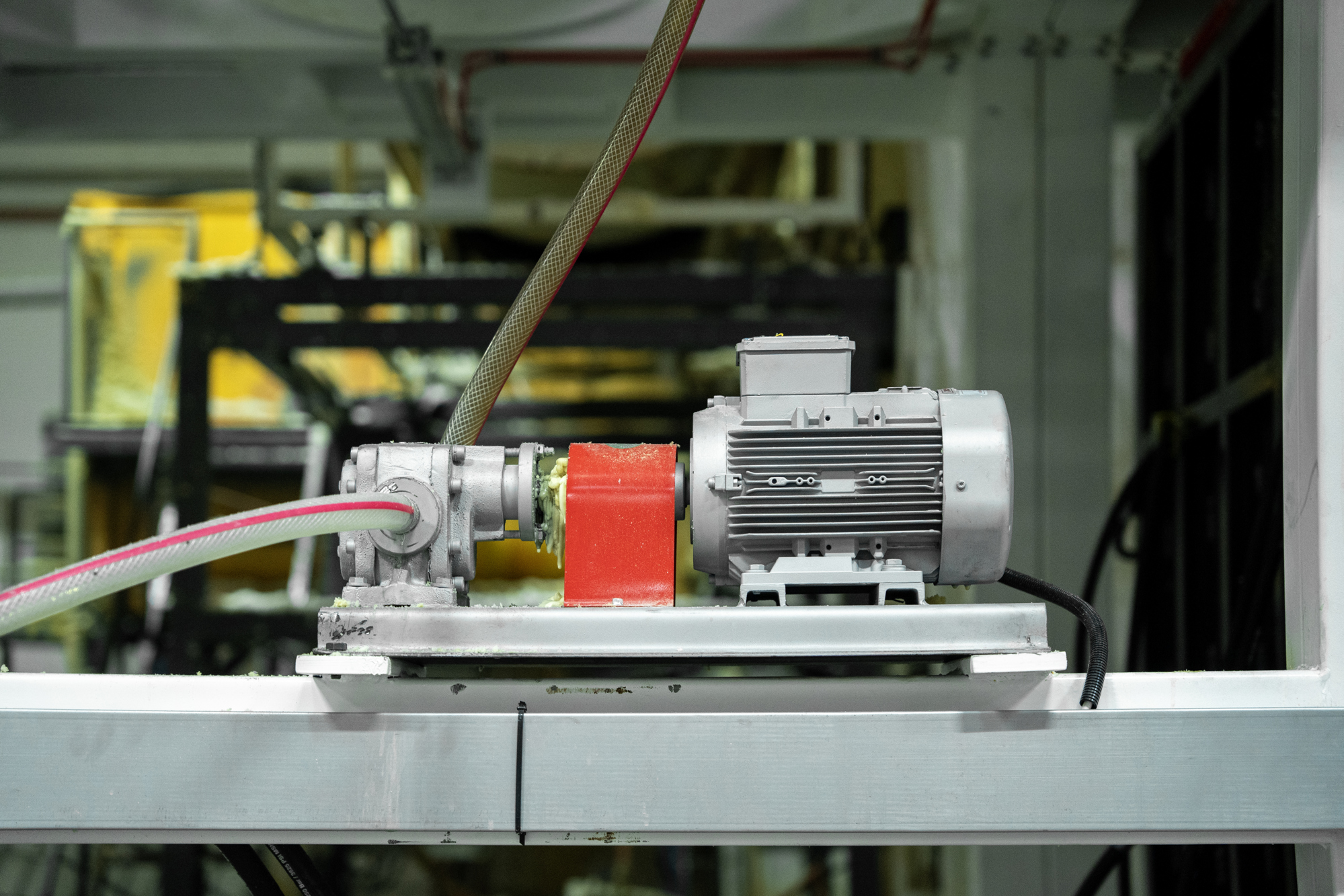

Glue Pump System

The high-efficiency glue pump system ensures homogeneous and controlled application of the material. It improves production quality and optimizes costs by delivering maximum performance with minimal waste.

BDX-200 with Photos

Industrial Durability, Long-Lasting Solution.

View Gallery Bondex Foam Casting Machine

Technical Details of the BDX-200

Stable Production, Strong Pressing, Maximum Efficiency!

Processing Area	2150 x 2150 x 2350 mm
Mixing Tank Motor	2 x 7.5 kW asynchronous motor
Mixing Tank Gear Reducer	2 x X103C 45.3 bevel gear reducer
Mixing Tank Dimensions	2000 x 2600 x 3000 mm
Hydraulic Unit Motor	11 kW

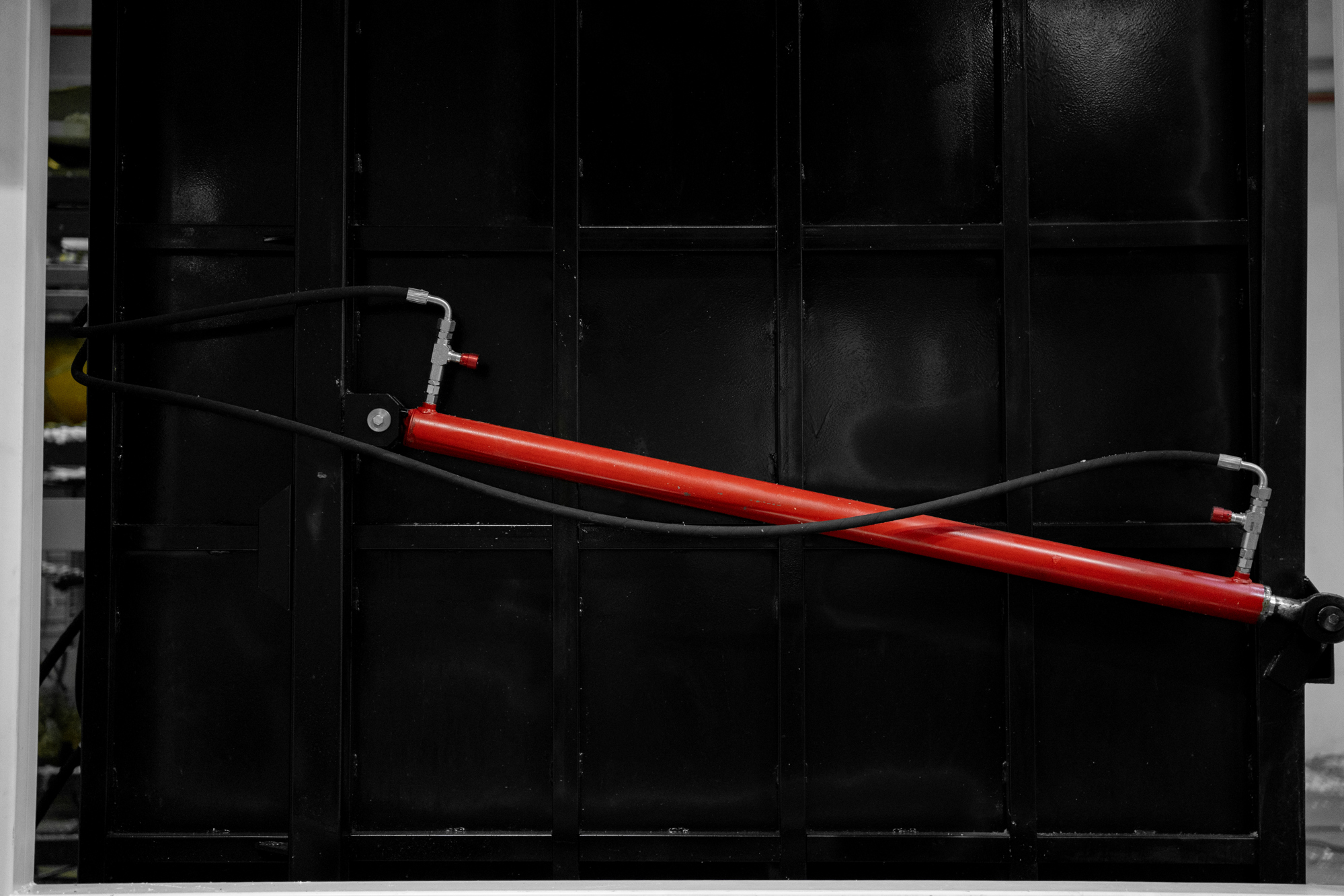

Hydraulic Piston Force	25 tons, 200 bar
Glue Pump System	1.1 kW gear pump
Glue Weighing System	Automatic weighing

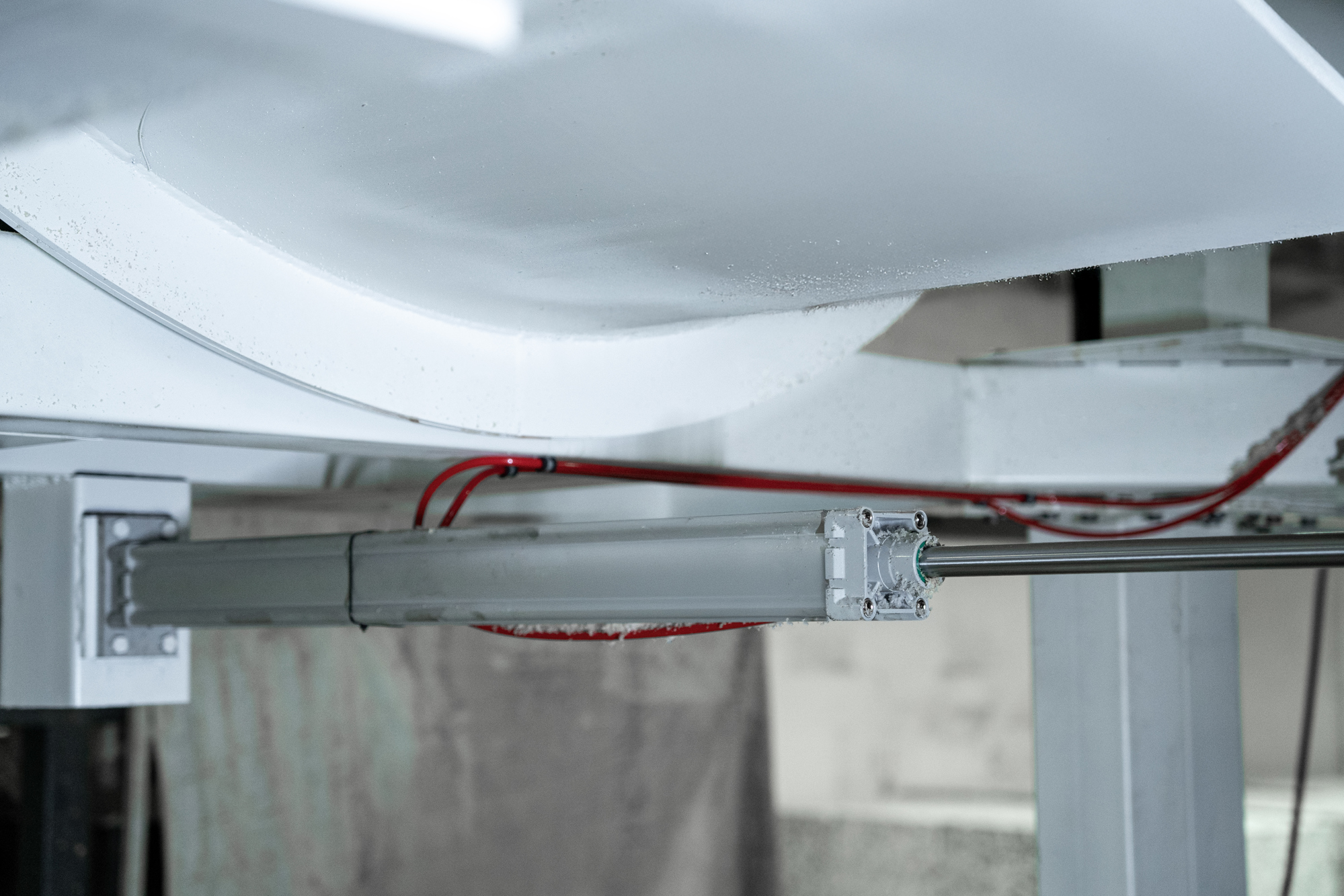

Mixing and Weighing Lid Discharge System	Pneumatic piston system
Weighing Silo Capacity	300 kg

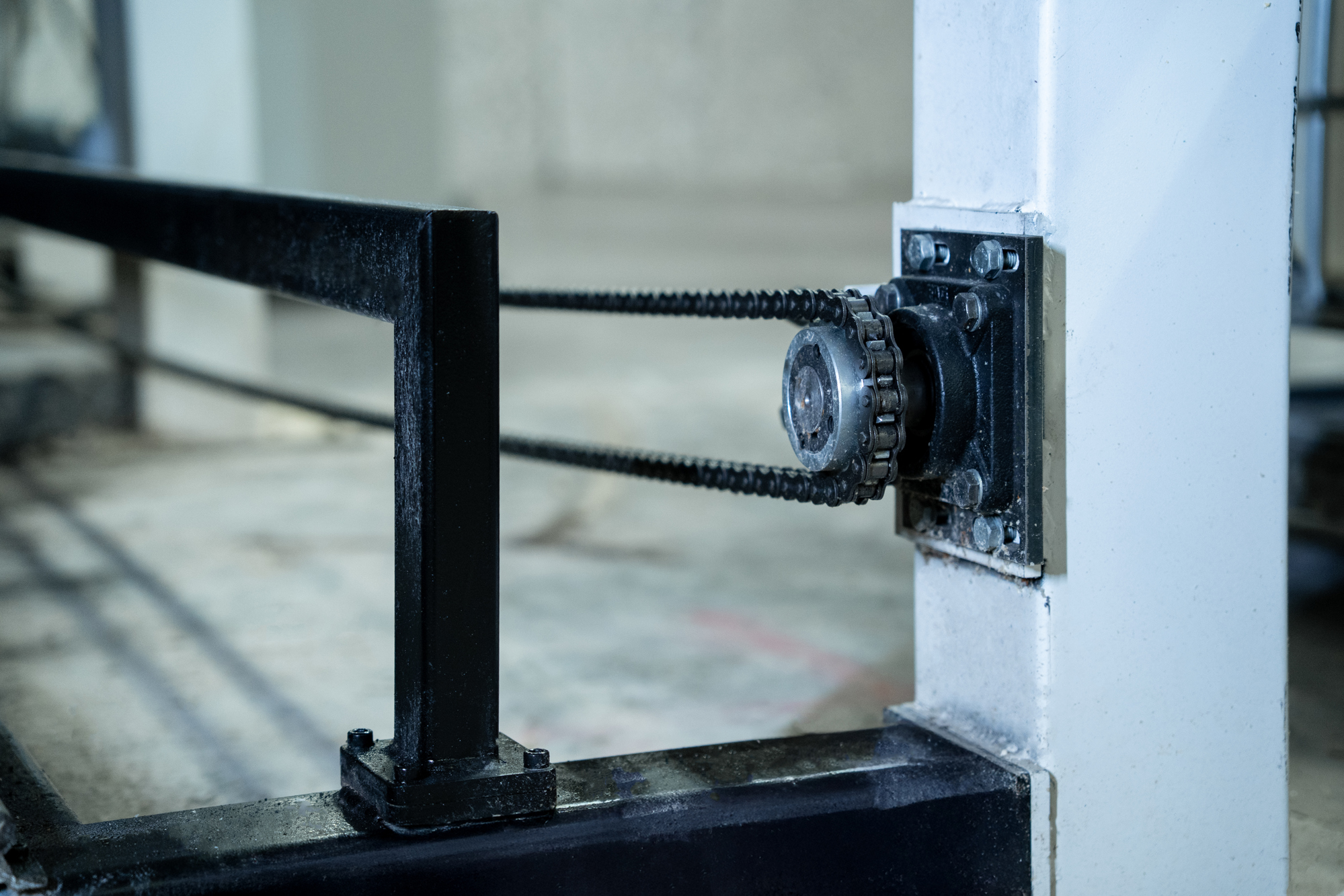

Mold Movement System	Chain and gear system

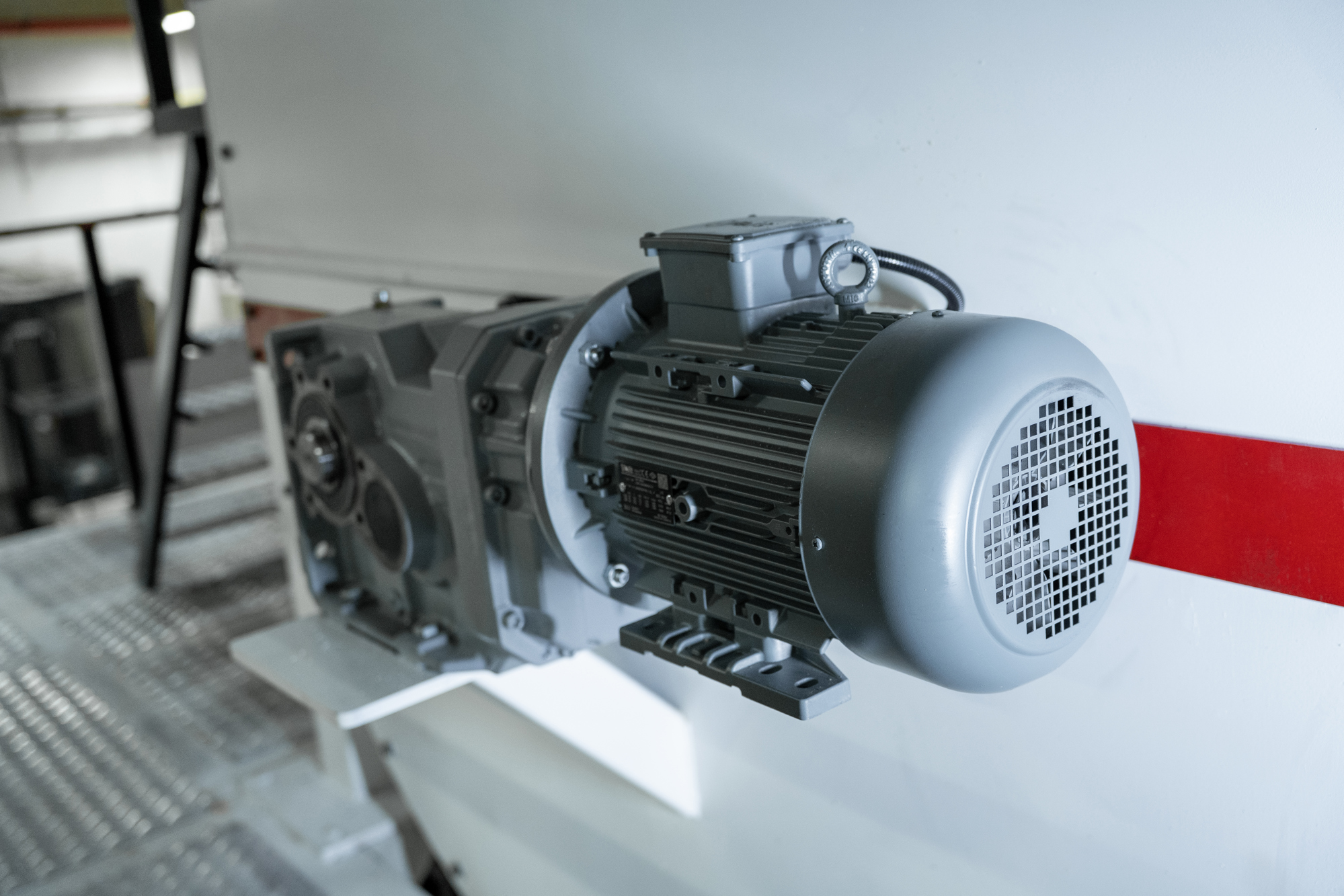

Mold Movement Motor	2.2 kW MR 273 geared asynchronous motor
Control Unit	PLC touchscreen control panel
Electrical & Electronic Systems	Professional series (Siemens, Eaton, Schneider)
Mold Unloading System	Automatic locking system
Bearings Used	SKF, FAG, NACHI, Timken

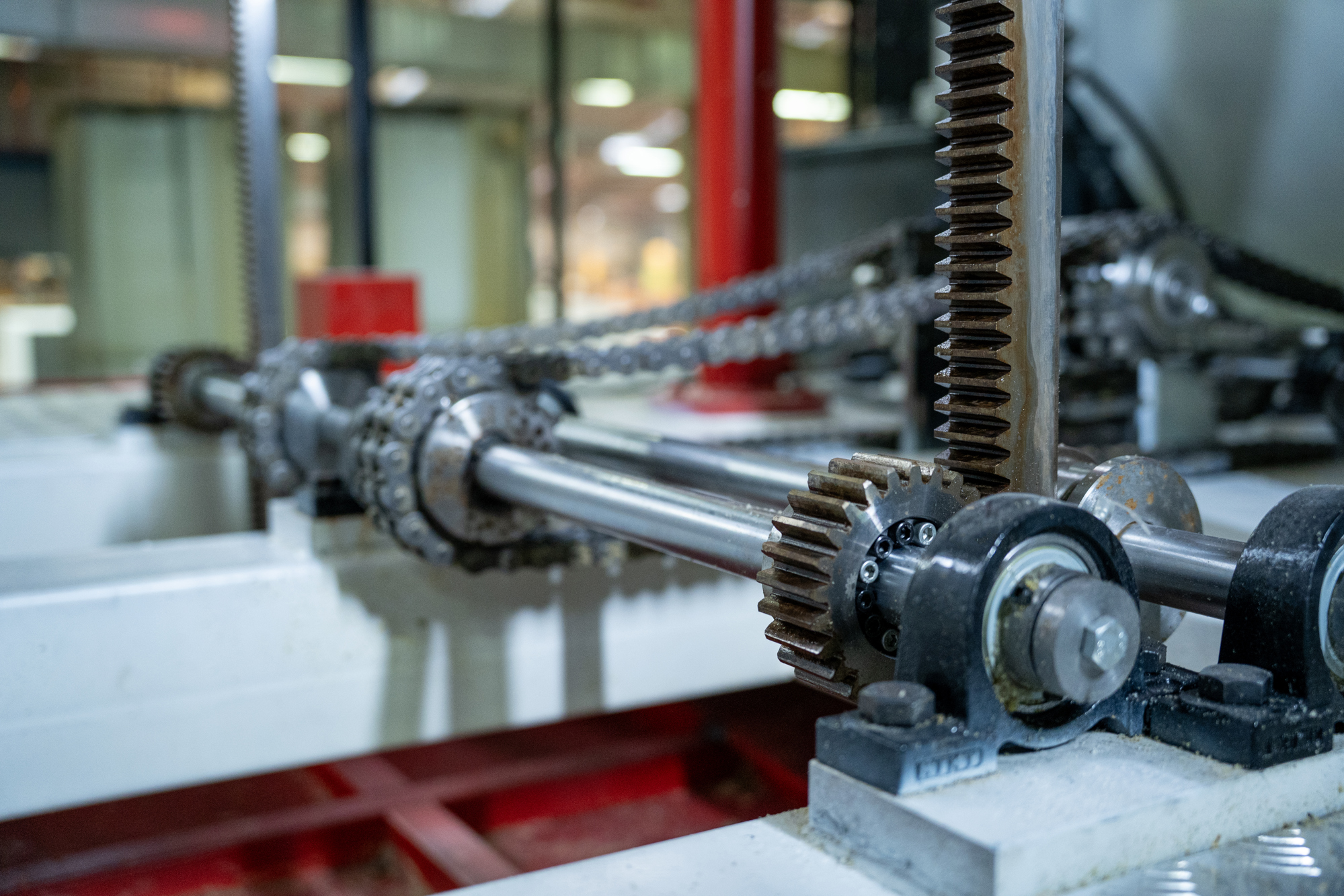

Press Movement System	Rack and chain gear system

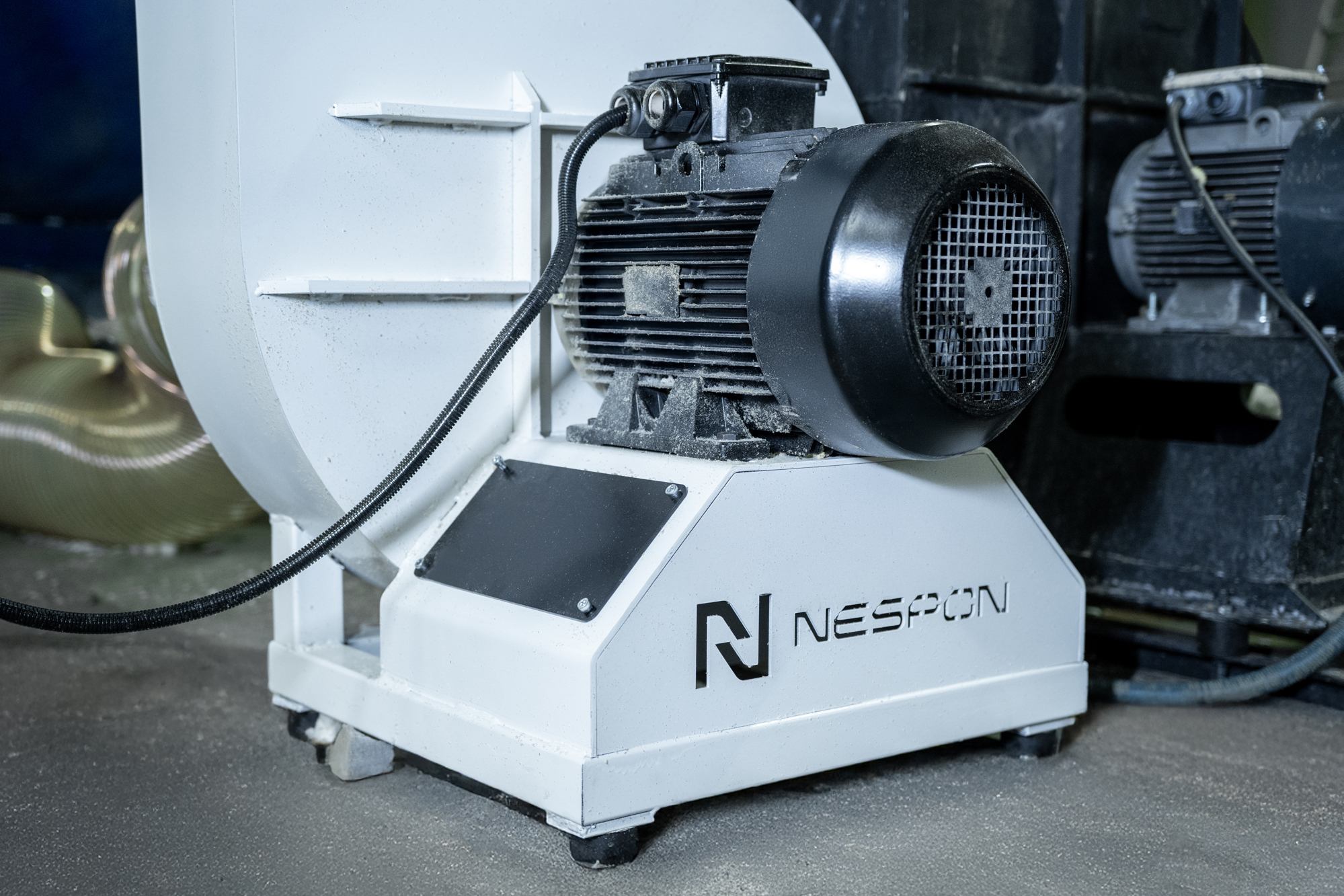

Fan	7.5 kW, 3000 rpm
Power Consumption	36.5 kW
Working Height	8500 mm
Working Area	100 m²

BDX-200 – Frequently Asked Questions

More Confidence with Every Question, More Performance.

What is the machine’s pressing force?

Makine 25 ton hidrolik pres gücüne sahiptir ve yüksek yoğunluklu sünger üretiminde maksimum sıkıştırma sağlar.

Does the system operate fully automatically?

Yes, thanks to the PLC touchscreen control panel and automatic weighing system, the production process is managed largely automatically.

What is the production capacity?

It has a daily production capacity of 250 m³.

What brands of equipment are used?

For electrical and electronic systems, high-quality and long-lasting brands such as Siemens, Eaton, and Schneider are used; for mechanical systems, brands like FAG, SKF, and NACHI are preferred.

What is the machine’s total power consumption?

The machine has a total power consumption of 36.5 kW and is suitable for high-performance, continuous operation.
